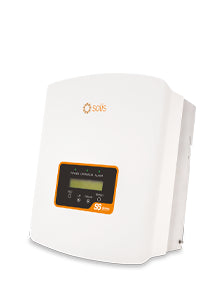

S6 Mini 2kW 1MPPT 1Ph Inverter - with DC isolator
Product details
- Rating: 2,000W
- Phases: 1
- Super high frequency switching technology with maximum efficiency of 97.1%
- Max PV Power of 3kW
- DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
- Wide voltage range - Ultra low start-up voltage of 90V and max PV input voltage of 600V
- Intergrated Export Power Manager (EPM)
- Integrated AFCI (DC arc-fault circuit protection)
- Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
- 5-year standard warranty, extendable to 10 or 20-years! (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
Solis Series 6 is the latest generation of grid-tied residential inverters from Solis. This range of inverters are leaders in affordable small residential rooftop installations.
Product Features
SA: NRS-097 certified
The 2 kW Mini at a glance
The largest Mini on the lighter hardware: one 14 A input, a 60 V start and the 7.4 kg case. From 2.5 kW up the design changes, as below.
2 kW or 2.5 kW?
S6 Mini 2 kW
SOL-2.0-MINI-S6-DC- Inputs
- 1 string, 14 A
- Tracking
- 50–500 V, starts at 60 V
- PV up to
- 3 kW
S6 Mini 2.5 kW
SOL-2.5-MINI-S6-DC- Inputs
- 2 strings, 19 A
- Tracking
- 80–500 V, starts at 90 V
- PV up to
- 3.8 kW
If the array fits on one string of six or seven panels, the 2 kW is enough. Two strings of panels need the 2.5 kW Mini.
Fitted, and what to add
- DC switch integrated, so no separate PV isolator on the wall
- Export Power Manager inside the inverter
- DC arc-fault protection (AFCI), switched on at commissioning
- CT clamp for the export manager
- Logger for SolisCloud: Wi-Fi or GPRS, both optional extras
DNO position
2 kW single-phase is below the 3.68 kW limit, so the install is notified rather than applied for. The G100 certificate for SOL-2.0-MINI-S6-DC is filed under Documents alongside the G98 and G99 ones.
Completes the install
-
Solis 100 A current transformer
A 10 m lead reaches from the meter position to the inverter. Its listing ties it to export limiting on single-phase S6 units.
-
RF kit and stick
An alternative to the Wi-Fi stick, described as compatible with all Solis inverters. The kit sits at the router.
-
5 extra years of warranty
Covers the S6 Mini range, for 10 years in total. Allow 6–8 weeks for the certificate.
Buying more than one
| Pack | Units | Price | Per unit | Saving |
|---|---|---|---|---|
| Single | 1 | £181.91 | £181.91 | — |
| Pack of 5 | 5 | £884.45 | £176.89 | 2.8% |
| Pack of 10 | 10 | £1,750.08 | £175.01 | 3.8% |
| Pallet of 24 | 24 | £4,156.11 | £173.17 | 4.8% |
Prices exclude VAT. Per-unit figures are worked out from the pack price.
Asked about this size
Up to 3 kW on one string: six 500 W panels, or seven 425 W ones (about 2.98 kW).
10.5 A at most, useful when sizing the AC cable and breaker.
It is cooled by natural convection, with no fan, and works from −25 °C to +60 °C.
Yes, every option is the S6-GR1P2K-M. Only the price per unit changes, as the pack table shows.
