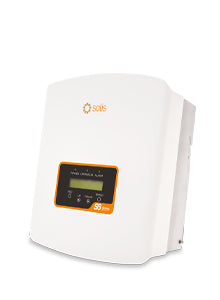

S6 Mini 2.5kW 1MPPT 1PH Inverter - with DC isolator

What changes at 2.5 kW

This is the first Mini on the larger hardware. It has two string connections, 19 A instead of 14 A, and a 30 A short-circuit rating. The case weighs 7.7 kg.

Two strings, one tracker

Both inputs run into the same MPPT, so they are tracked as one. Two matching strings on the same roof face work well. The tracking window moves up to 80–500 V, generation starts at 90 V and the rated voltage is 330 V. For an east/west split, where each face needs its own tracker, look at the S6 2.5 kW dual tracker.

In the box

• Integrated DC isolator (the -DC in the part code)
• Export Power Manager built in
• AFCI arc-fault protection, needs activating on commissioning
• A CT, so the EPM can see the supply
• A Wi-Fi or GPRS stick for monitoring (RS485 is standard)

Grid rules

Order with this inverter

• 100 A export-limiting CT

  Listed for single-phase Solis S6 inverters. It is what lets the built-in EPM hold export to a set level.

• Solis GPRS stick

  Mobile-network monitoring for any Solis inverter, so no router is needed on site. SIM not included.

• Extend cover to 20 years

  The 15-year extension for the S6 Mini series, on top of the standard 5.
