SolaX
OUT OF STOCK

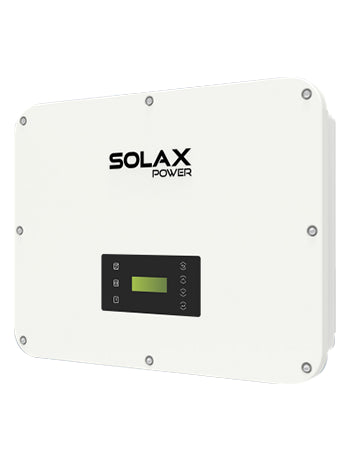

SolaX X3 Ultra Hybrid 3 Phase Inverter - Buy to Order
£2,509.98
ex VAT
Secure Checkout
14-Day Returns
Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements
SolaX X3 Ultra Hybrid 3 Phase Inverter - Buy to Order
- SolaX X3 Ultra Hybrid 3 Phase Inverter - Buy to Order
- Part No: X3-ULTRA-25
- Storage Systems - Hybrid Inverter
- Maximum 200% oversize and 200% PV input power
- Maximum 36A input current per MPPT, support high power solar panel
- AI ready, forecasting solar generation and home consumption, smart energy management strategy
- VPP ready, SolaX cloud supports resource aggregator
- Support smart scene function, intelligent loads management Micro-grid ready, supporting a variety of scenarios, both on-grid and off-grid, balancing power between PCS and Hybrid in real time
- Support 7×24h scheduling mode
- Support Wireless meter solution
- Dual independent battery ports are ready to expand battery capacity free
- Robust back-up ability, switch over time ＜10ms, up to 200% EPS output for 10s, support half-wave loads
- Stronger, EPS operation without battery
- P66 protection level
- AC&DC SPD type II, always guarding the inverter AFCI optional
X3-ULTRA Three-phase Hybrid Inverter
Commercial & Industrial Hybrid Solution
Economic
Intelligent
Robust
Safe
High Efficiency 98.0 %More power from the same roof space
Technical Specifications
Rated Power (Pmax)25,000 VA
Module Efficiency98.0 %
Battery Voltage120 - 800 V
MPPT Quantity3
Min MPPT Voltage160 V
Max MPPT Voltage950 V
Max Input Voltage1,000 V
Max DC Power50,000 W
Max AC Power (5 min)27,500 VA
Max DC Current36 / 36 / 36 A
Max DC Inputs6
Height526 mm
Width696 mm
Depth240 mm
Weight47 kg
Operating Temperature-35 °C to +60 °C, derating above +45 °C
