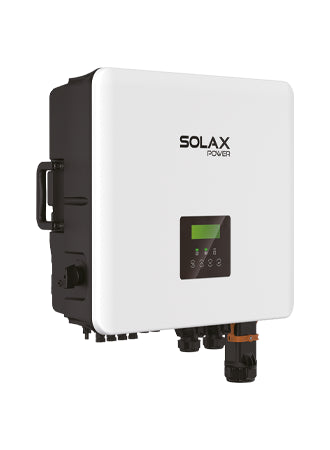

SolaX X3 G4-V2 Hybrid 3 Phase Inverter HV 8.0kW

X3-HYB-G4 PRO offers flexible expansion with dual independent battery ports and versatile microgrid and generator modes. It ensures safety with rapid shutdown compatibility, SPD-II protection, and 10s 200% EPS output with fast UPS-level switch time. Smart energy management is enabled with V2X readiness, intuitive controls, and VPP compatibility. Economically, it supports 200% PV oversizing, 110% AC overloading, and features a 20A DC input per MPPT with 3 trackers, all within an ultra-wide MPPT range of 110-950V

High Performance

• 20A DC input per MPPT with 3 trackers
• 200% PV oversizing and up to 110% AC output
• Ultra-wide MPPT range of 110-950V

Assured Reliability

• Up to 200% EPS output for 10s
• UPS-level switchover time<10ms
• Optional Rapid Shutdown function for enhanced safety
• Type II SPD on AC&DC side
• Optional AFCI protection*

Smart Management

• V2X ready for smart home energy integration
• Smart Schedule, Smart Scene, and 7*24h TOU
• Wireless meter compatibility
• VPP ready with a variety of compatibility (OpenADR, IEEE2030.5, FCAS, API)

Flexible Adaptability

• Dual battery ports & 2-in-1 function for expansion
• Additional ports for simplified wiring and installation
• Functional and stylish wiring cover
• Microgrid and generator modes for versatile operations

Looking to expand your system capacity? See Solax EPS Parallel Box options

• X3-PBOX-60kW-G2 – Connect up 6 hybrid inverters with a maximum of 60kW
• X3-PBOX-150kW-G2 – Connect up 10 hybrid inverters with a maximum of 150kW

Please note: When installing in parallel all inverters should have the same Kilowatt rating

Note: An energy meter is required for all installtions. Please see SOLAX-M3-40

Wi-Fi is now included with Solax X3-Hybrid-G4 V2 product so no need to purchase additional Wi-Fi equipment
