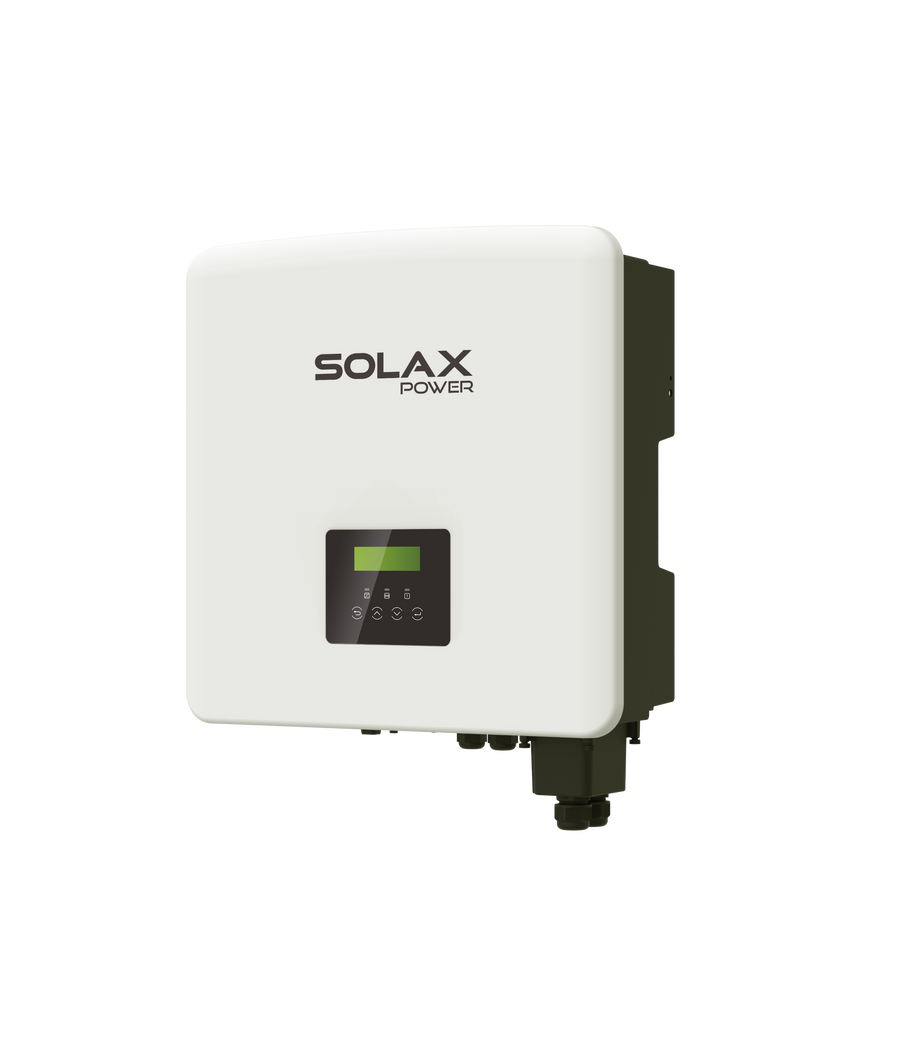

SolaX X3 G4 RetroFit AC Coupled Battery 3ph Inverter 10kW
£404.01
ex VAT
Pack size: Single
Secure Checkout
14-Day Returns
Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements
SolaX X3 G4 RetroFit AC Coupled Battery 3ph Inverter 10kW
- SolaX X3 G4 RetroFit AC Coupled Battery 3ph Inverter 10kW
- Part No: X3-FIT-10 / X3-FIT-10-5
- Storage Systems - Charger-Inverter
- Compatible with High voltage batteries
- IP65 protection rating
- Natural cooling and low maintenance
- Max Efficiency up to 96%
- X3-PBOX-60kW-G2 – Connect up 6 AC Coupled inverters with a maximum of 60kW
- X3-PBOX-150kW-G2 – Connect up 10 AC Coupled inverters with a maximum of 150kW
Three Phase Retro Fit 10.0kW AC Coupled inverter
Product Features
This is the W version of the inverter with built in EPS function. It required external back up box to fully utilise the EPS function.
It can be used with between 2 and 4 Solax Triple Power Batteries (one size batteries per system only) .
This inverter can be paralleled up to 5 units per site.
Looking to expand your system capacity? See Solax EPS Parallel Box options
Please note: When installing in parallel all inverters should have the same Kilowatt rating
IP65 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)10 kW
Battery TypeLithium-ion or lead-acid
Battery Voltage180 - 800 V
Max AC Power (5 min)11 kVA
Height503 mm
Width503 mm
Depth199 mm
Weight30 kg
IP RatingIP65
Operating Temperature-35 °C to +60 °C, derating above +45 °C
Build your complete solar system
Everything you need in one place.
- Inverters
- Batteries
- Mounting Systems
- Cabling & Accessories
Documents & Certificates
--
CE Declaration of Conformity
Data Sheet German
Data Sheet Solax X3 Fit
EN 50438 Netherlands
G98 Certificate
G99 Certificate
Installation Manual
Installation Manual German
NRS-2017
Test Certificate EMC
User Manual
User Manual German
VDE 4105 AR
VDE 4105 AR 8 to 10KW
VDE V 0126
Warranty Solax Warranty T&C
