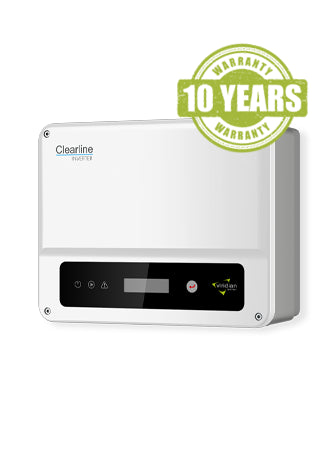

Viridian Clearline 3.0kW 1PH Inverter 1MPPT with integrated DC isolator switch
£196.45
ex VAT
Secure Checkout
14-Day Returns
Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements
Viridian Clearline 3.0kW 1PH Inverter 1MPPT with integrated DC isolator switch
- Viridian Clearline 3.0kW 1PH Inverter 1MPPT with integrated DC isolator switch
- Part No: VIR-CSI3000
- Inverters - Main Units
- Rating: 3,000W
- Phases: 1
- Single Phase, 1 MPPT
- DC switch and surge protection
- Max efficiency of 97.6%
- IP65 rated
- 10 year warranty
- Smart Control - Generation monitoring and optional export limitation
Viridian Clearline Inverter - 3.0kW
High Efficiency 97.6 %More power from the same roof space
IP65 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)3,000 W
Module Efficiency97.6 %
MPPT Quantity1
Min MPPT Voltage50 V
Max MPPT Voltage550 V
Max Input Voltage600 V
Max DC Power4,500 W
Max AC Power (5 min)3,000 VA
Surge AC Power (1 sec)3,300 W
Max DC Current15 A
Max DC Inputs1
Integrated DC SwitchYes
Height230 mm
Width295 mm
Depth113 mm
Weight5.8 kg
ConnectorMC4
IP RatingIP65
Operating Temperature-25 °C to +60 °C
Warranty10 years
