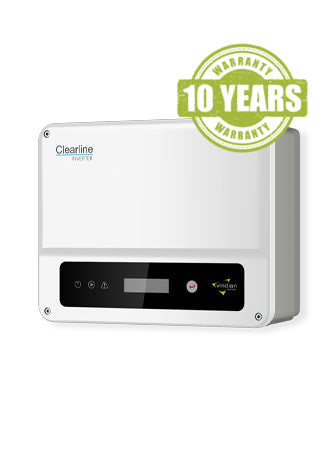

Viridian Clearline 1.0kW 1PH Inverter 1MPPT with integrated DC isolator switch
£181.91
ex VAT
Secure Checkout
14-Day Returns
Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements
Viridian Clearline 1.0kW 1PH Inverter 1MPPT with integrated DC isolator switch
- Viridian Clearline 1.0kW 1PH Inverter 1MPPT with integrated DC isolator switch
- Part No: VIR-CSI1000
- Inverters - Main Units
- Rating: 1,000W
- Phases: 1
- Single Phase, 1 MPPT
- DC switch and surge protection
- Max efficiency of 97.2%
- IP65 rated
- 10 year warranty
- Smart Control - Generation monitoring and optional export limitation
Viridian Clearline Inverter - 1.0kW
High Efficiency 97.2 %More power from the same roof space
IP65 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)1,000 W
Module Efficiency97.2 %
MPPT Quantity1
Min MPPT Voltage40 V
Max MPPT Voltage450 V
Max Input Voltage500 V
Max DC Power1,500 W
Max AC Power (5 min)1,000 VA
Surge AC Power (1 sec)1,100 W
Max DC Current15 A
Max DC Inputs1
Integrated DC SwitchYes
Height230 mm
Width295 mm
Depth113 mm
Weight5.8 kg
ConnectorMC4
IP RatingIP65
Operating Temperature-25 °C to +60 °C
Warranty10 years
