Tesla Powerwall Dolly: Official Lifting and Mounting Tool for Powerwall 3

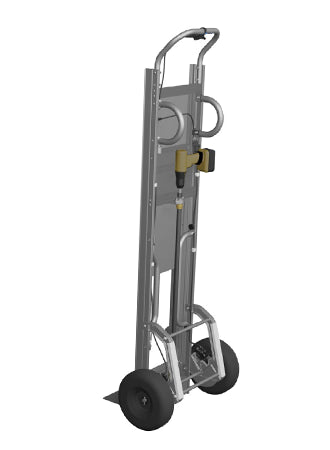

The Tesla Powerwall Dolly is a purpose-built installation tool designed to safely lift, transport, and mount Powerwall battery units in residential and light commercial settings. Engineered by Tesla specifically for Powerwall, it removes the need for multiple operatives to manhandle heavy battery units, reducing installation risk and time on site.

The dolly connects directly to Powerwall via slide rails and a locking plate (Powerwall 3) or adjustable straps (Powerwall 2 and Powerwall+), holding the unit securely throughout transit and placement. A lead screw lifting mechanism, driven by a standard 18–20V cordless drill via a 19mm (¾ in) socket, raises and lowers the Powerwall with precision — no impact drivers. The drill is not included.

Pneumatic tyres and single-lever-actuated dual hydraulic disc brakes allow the dolly to cross rough terrain and descend stairs with the Powerwall secured, making it suitable for challenging install locations. Compatible with all Powerwall models.

Specifications

Key Features

• Custom-engineered by Tesla for Powerwall — direct interface, no adapters required
• Drill-driven lead screw for controlled, precise lifting — no manual heavy lifting
• Slide rails and locking plate for Powerwall 3; adjustable straps for Powerwall 2 and Powerwall+
• Dual hydraulic disc brakes for controlled descent on stairs and slopes
• Pneumatic tyres rated for rough terrain and outdoor environments
• Optional dolly platform accessory extends maximum install height to 991 mm

Installation Notes

PPE including protective footwear must be worn when operating the dolly. Set the drill clutch one level below maximum and use low gear throughout. Do not use an impact driver. The drill strap (included) must be secured before operation. The dolly is designed for use by trained installers only.
