SUN2000 50KTL-M3 50kW 3PH inverter-(BTO)
Huawei OUT OF STOCK

SUN2000 50KTL-M3 50kW 3PH inverter-(BTO)

SUN2000-50KTL-M3
£2,550.30 ex VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

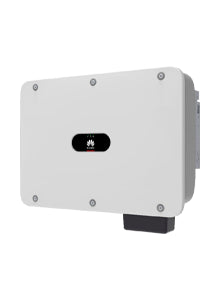

Huawei SUN2000 50KTL-M3 50kW 3PH inverter-(BTO)

SUN2000 50KTL-M3 50kW 3PH inverter-(BTO)
Part No: SUN2000-50KTL-M3
Inverters - Main Units
  • Rating: 50,000W
  • Phases: 3

Huawei SUN2000-50KTL-M3 | 50 kW | 3PH | 4 MPPT

  • 8 strings intelligent monitoring and fast trouble-shooting
  • Wide MPPT range.
  • Integrated PID Recovery
  • Maximum efficiency 98.7%
  • European efficiency 98.4%
  • <5.5W consumption during the night
  • DC switch integrated, safe and convenient for maintenance
  • Type II surge arresters for both DC and AC
  • Residual Current Detection (RCD) protection
  • Anti-islanding Protection
  • Smart air cooling for optimum temperature control
  • Protection rating of IP66
  • 5 year manufacturer warranty as standard: optional upgradable to 10 years.

Note: This inverter has no screen and must be commissioned either by using the SUN2000 app on an Android phone and IOS or by connecting the unit to the Smart Logger and this inverter has no AFCI.

All residential and commercial inverters can now be monitored by FusionSolar. A Smartlogger is required for plants with more than 10 inverters.

High Efficiency 98.5 %More power from the same roof space
Technical Specifications
Rated Power (Pmax)50,000 W
Module Efficiency98.5 %
MPPT Quantity4
Min MPPT Voltage200 V
Max MPPT Voltage1,000 V
Max Input Voltage1,100 V
Max DC Power50,000 W
Max AC Power (5 min)55,000 VA
Surge AC Power (1 sec)55,000 W
Max DC Current30 A
Max DC Inputs8
Integrated DC SwitchYes

Build your complete solar system

Everything you need in one place.

  • Inverters
  • Batteries
  • Mounting Systems
  • Cabling & Accessories
Build a system
Documents & Certificates
-- VDE-AR-N 4110/4120 - Sun2000-15-50KTL-M3 - EN Application Note Update Fusion App - DE CE Declaration of Conformity DoC_NC6 From_2023 Feb CE Declaration of Conformity M3 - CEDOC - Huawei-Radio Equipment Directive2014-53-EU-RoHS Directive 2011-65-EU-2015-863
