Solis
OUT OF STOCK
S6 Mini 1.5kW 1MPPT 1PH Inverter - with DC isolator
£178.32
ex VAT
Secure Checkout
14-Day Returns
Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

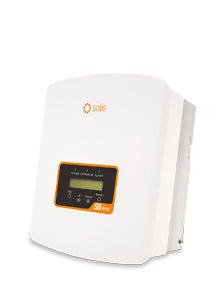

Solis S6 Mini 1.5kW 1MPPT 1PH Inverter - with DC isolator
- S6 Mini 1.5kW 1MPPT 1PH Inverter - with DC isolator
- Part No: SOL-S6-GR1P-1.5K-M-EU
- Inverters - Main Units
- Rating: 1,500W
- Phases: 1
- Super high frequency switching technology with maximum efficiency of 96.6%
- Max PV Power of 2.3kW
- DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
- Wide voltage range - Ultra low start-up voltage of 60V and max PV input voltage of 600V
- Intergrated Export Power Manager (EPM)
- Integrated AFCI (DC arc-fault circuit protection)
- Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
- (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy, Ireland)
The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.
Product Features
High Efficiency 96.6 %More power from the same roof space
IP66 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)1.5 kW
Module Efficiency96.6 %
MPPT Quantity1
Min MPPT Voltage50 V
Max MPPT Voltage500 V
Max Input Voltage600 V
Max DC Power2.3 kW
Max AC Power (5 min)1.65 kVA
Surge AC Power (1 sec)1,650 W
Max DC Current14 A
Max DC Inputs1
Integrated DC SwitchYes
Height373 mm
Width310 mm
Depth160 mm
Weight7.4 kg
ConnectorMC4
IP RatingIP66
Operating Temperature-25 °C to +60 °C
Warranty5 years standard, extendable to 10, 15 or 20 years
Build your complete solar system
Everything you need in one place.
- Inverters
- Batteries
- Mounting Systems
- Cabling & Accessories
Documents & Certificates
Application Note Solis Datalogger Guide
Application Note Solis Inverters - RCD - Recommendation
CE Declaration of Conformity EN61000_Certificate of conformity (2021)
Data Sheet S6-GR1P(0.6-3.6)K-M - DE
Data Sheet S6-GR1P(0.7-3.6)K-M - EN
EN50549
EN50549 Ireland Solis mini
G100 certification SOL-1.5-MINI-S6-DC
G98 Certificate
G98 Certificate NI
G99 Certificate
G99 Certificate NI
Installation Manual S6-GR1P(0.7-3.6)K-M
Installation Manual Solis Mini (700-3600) 4G S6 DE (German)
User Manual S6-GR1P(0.7-3.6)K-M - DE
User Manual Solis Service Sheet
VDE 4105 AR Dyness - DL5.0C
Warranty Europa 2023 - DE (German)
Warranty Gwarancja 2022 (Polish)
Warranty Solis warranty EN
Warranty Solis_Inveter_Warranty_Global - EN
