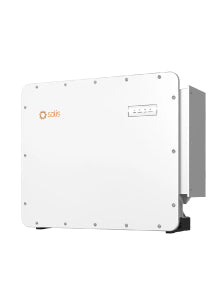

Solis S6 150kW 3 Phase Grid Tied Inverter 7x MPPT
Solis 54 IN STOCK

Solis S6 150kW 3 Phase Grid Tied Inverter 7x MPPT

SOL-S6-GC150K
£4,010.05 ex VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

Solis S6 150kW 3 Phase Grid Tied Inverter 7x MPPT

Solis S6 150kW 3 Phase Grid Tied Inverter 7x MPPT
Part No: SOL-S6-GC150K
Inverters - Main Units
  • Rating: 150,000W
  • Phases: 3

Solis S6 150 kW 3 Phase Grid Tied Inverter with 7 x MPPT, Smart DC SW,400VAC, AFCI, SPD Type 2 Certified, C5 Protection

Product Features:

  • Max. PV DC Power of 225kW over 7-MPPT’s with 21 string inputs rated at 18A
  • Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
  • Type-II over-voltage surge protection for both DC and AC
  • AFCI (DC arc-fault circuit protection), DC Switch and DC reverse-polarity protection
  • Intelligent monitoring on Solis Cloud - including Smart String I-V Curve Diagnosis and Remote upgrades
  • 5-year standard warranty - extendable to up to 20 years

Installer Notes:

SA: NRS-097-2-1 Certified, Pending City of Cape Town approval here

High Efficiency 98.8 %More power from the same roof space
IP66 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)150 kW
Module Efficiency98.8 %
MPPT Quantity7
Min MPPT Voltage160 V
Max MPPT Voltage1,000 V
Max Input Voltage1,100 V
Max DC Power225 kW
Max AC Power (5 min)165 kVA
Surge AC Power (1 sec)121,000 W
Max DC Current7 x 54 A
Max DC Inputs21
Integrated DC SwitchYes
Height035.5 mm
Width1 mm
Depth869 mm
Weight105 kg
ConnectorMC4
IP RatingIP66
Operating Temperature-30 °C to +60 °C
Warranty5 years standard, extendable to 10, 15 or 20 years
