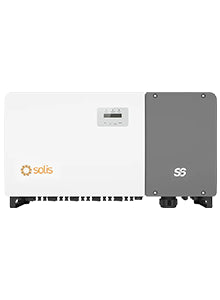

Solis 125kW S6 3 Phase 10x MPPT
Solis 44 IN STOCK

Solis 125kW S6 3 Phase 10x MPPT

SOL-S6-GC125K
£2,906.05 ex VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

Solis 125kW S6 3 Phase 10x MPPT

Solis 125kW S6 3 Phase 10x MPPT
Part No: SOL-S6-GC125K
Inverters - Main Units
  • Rating: 125,000W
  • Phases: 3

Solis S6 125kW 3 Phase Grid Tied Inverter with 10x MPPT,DC SW,400VAC, AFCI 2.0, SPD Type 2 Certified, C5 Protection

Product Features:

  • Max. PV DC Power of 165kW
  • 10 MPPT’s with two string inputs per MPPT rated at 16A
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range - Ultra low start-up voltage of 195V and max PV input voltage of 1100V
  • Maximum AC output power of 121kW
  • Integrated AFCI (DC arc-fault circuit protection), DC Switch and DC reverse-polarity protection
  • Intelligent monitoring - Smart I-V Curve Diagnosis - Supports PLC,GPRS & Wi-Fi communication
  • 5-year standard warranty - extendable to up to 20 years

Register on SolisCloud, to support remote upgrade and control.

NRS-097-2-1 Certified

UK: G99 Certified.

Installer Notes:

UK:Please note an EPM is still required for the S6-GC(80-125)k

SA: City of Cape Town approval coming soon here.

High Efficiency 98.7 %More power from the same roof space
IP66 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)125 kW
Module Efficiency98.7 %
MPPT Quantity10
Min MPPT Voltage160 V
Max MPPT Voltage1,000 V
Max Input Voltage1,100 V
Max DC Power165,000 W
Max AC Power (5 min)125 kVA
Surge AC Power (1 sec)121,000 W
Max DC Current5 x
Max DC Inputs20
Integrated DC SwitchYes
Height014 mm
Width1 mm
Depth567 mm
Weight96 kg
IP RatingIP66
Operating Temperature-30 °C to +60 °C
Warranty5 years standard, extendable to 10, 15 or 20 years

Build your complete solar system

Everything you need in one place.

  • Inverters
  • Batteries
  • Mounting Systems
  • Cabling & Accessories
Build a system
Documents & Certificates
-- S6-GC80-125K Application Note Solis AC Couple - Frequency Shift Setting Application Note Solis and EPM Quick Setup Guide Application Note Solis Datalogger Guide
