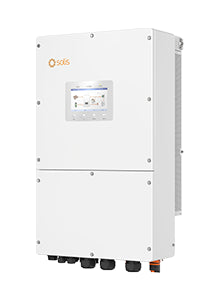

Solis S6 Three Phase 30kW High Voltage Hybrid Inverter
£2,089.71
ex VAT
Secure Checkout
14-Day Returns
Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements
Solis S6 Three Phase 30kW High Voltage Hybrid Inverter
- Solis S6 Three Phase 30kW High Voltage Hybrid Inverter
- Part No: SOL-S6-EH3P30K-H
- Storage Systems - Hybrid Inverter
- Allowable PV of up to 60kW, on the 180-1000V MPPT.
- 3-MPPTs, rated at 40A each, with 2-string inputs each allowing for 6 strings of high power/current PV modules.
- Supports Grid and Generator AC inputs.
- Parallel up to 6 x inverters for up to 300kW of back-up load.
- Battery Charge and Discharge current of up to 140A.
- UPS transfer time of less than 10ms.
- 160% surge power for 2s to accommodate inductive loads.
- Integrated AFCI (DC arc-fault circuit protection) – mitigating fire risks.
- LCD display and remote firmware upgrades with included S4 Wi-Fi/LAN Stick and Solis Cloud support/monitoring.
- Solis reliability with 5-year warranty. (extendable to 10/15/20-years)
- Current transformer ESCT-T50-300A/5A included in product packaging
- NRS-097 certified and CoCT approved.
Solis Three Phase High Voltage Energy Storage Hybrid Inverter
Introducing the Solis S6-EH3P(30-50)K-H Series. High voltage, three-phase energy storage for commercial applications.
Features:
SA:
Dyness stack 100 compatibility of up to 13 batteries per stack without exceeding the 800V battery range.
Important
The inverter supports a maximum battery charge and discharge of 140A. As each of the two battery ports support a maximum of 25mm^2 cable/70A. If you require the 140A from a single battery/battery stack, you are required to connect your battery cables to a common bus bar for positive and negative and take a 25mm^2 cable to each battery port on the inverter. Setting 1 BAT 2 DC on your inverter battery settings and connecting to BMS port 1.
High Efficiency 97.8 %More power from the same roof space
IP66 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)30 kW
Module Efficiency97.8 %
Battery Voltage150 - 800 V
MPPT Quantity3
Min MPPT Voltage150 V
Max MPPT Voltage850 V
Max Input Voltage1,000 V
Max DC Power60 kW
Max AC Power (5 min)30 kVA
Max DC Current3 x 40 A
Max DC Inputs6
Integrated DC SwitchOptional
Height880 mm
Width530 mm
Depth290 mm
Weight73 kg
IP RatingIP66
Operating Temperature-25 °C to +60 °C
Warranty5 years standard, extendable to 10, 15 or 20 years
Build your complete solar system
Everything you need in one place.
- Inverters
- Batteries
- Mounting Systems
- Cabling & Accessories
Documents & Certificates
-- VDE-AR-N 4110 Solis S6 EH3P(30-50)K-H EN DE (English, German)
Application Note Solis Datalogger Guide
Application Note Solis Hybrid winter guide EN 2024
Application Note Solis Winter Hybrid guide DE 2024 (German)
Data Sheet Solis S6-EH3P(29.9-50)K-H - DE
Data Sheet Solis S6-EH3P(29.9-50)K-H - NL
Data Sheet Solis S6-EH3P(30-50)K-H - EN
Data Sheet Solis S6-EH3P(30-50)K-H - PL
Installation Manual Solis S6-EH3P29.9-50K-H (German)
Installation Manual Solis_Manual_S6-EH3P(30-50)K-H_EUR_V1.2
NRS-2017 8 to 10KW
TUV Certificate JA Solar Compatibility Approval Letter
Warranty Solis Warranty Europe 2025 UK only
