Solis
26 IN STOCK
Solis S6 15kW Three-Phase Hybrid Inverter for 48V Batteries (EH3P15K)
£1,457.06
ex VAT
Secure Checkout
14-Day Returns
Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

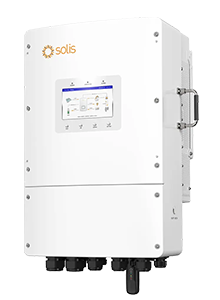

Solis S6 15kW Three-Phase Hybrid Inverter for 48V Batteries (EH3P15K)
- Solis S6 15kW Three Phase Low Voltage Hybrid Inverter
- Part No: SOL-S6-EH3P15K-NV-YD-L
- Storage Systems - Hybrid Inverter
- Allowable PV of up to 24kW, on the 200-1000V MPPT.
- 2-MPPTs, rated at 40A each, with 3-string inputs each allowing for 3 strings of 20A high power/current PV modules.
- Generator connectivity with automatic On/Off control.
- Parallel up to 6 inverters for up to 90kW of backup.
- 10 second, 200% surge power backup overload capability.
- 24 hour real-time intelligent energy management - Bluetooth/Wi-Fi/App.
- Uninterrupted power supply with 10ms reaction time.
- Comes with a Wi-Fi/LAN datalogger a
- 5-year warranty - extendable to 10-years.
- NRS 097 certified but awaiting CoCT approval.
The Solis Series 6 Hybrid inverter range offers advanced features suitable to meet and excel in todays solar market. Smart LCD display and Bluetooth allow for quick set-up in under 5 minutes (no Wi-Fi required), generator integration and so much more.
Features:
SA:
Attention: This inverter is now certified for Belgium!!
High Efficiency 97.5 %More power from the same roof space
IP66 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)15 kW
Module Efficiency97.5 %
Battery Voltage40 - 60 V
MPPT Quantity2
Min MPPT Voltage200 V
Max MPPT Voltage850 V
Max Input Voltage1,000 V
Max DC Power24 kW
Max AC Power (5 min)15 kVA
Max DC Current40 A / 40 A
Max DC Inputs8
Integrated DC SwitchYes
Height660 mm
Width430 mm
Depth305 mm
Weight42 kg
IP RatingIP66
Operating Temperature-25 °C to +60 °C
Warranty5 years standard, extendable to 10, 15 or 20 years
Build your complete solar system
Everything you need in one place.
- Inverters
- Batteries
- Mounting Systems
- Cabling & Accessories
Documents & Certificates
Application Note Solis Datalogger Guide
Application Note Solis Winter Hybrid guide DE 2024 (German)
Data Sheet Solis 3PH LV Hybrid - DE (German)
Data Sheet Solis 3PH LV Hybrid - EN
Data Sheet Solis 3PH LV Hybrid - NL (Dutch)
Data Sheet Solis 3PH LV Hybrid - PL (Polish)
EN50549 Poland Solis S6-EH3P(8-15)K-NV-YD-L
EN50549 Solis S6-EH3P(8-15)K-NV-YD-L
User Manual Solis S6 EH3P(8-18)K02-NV-YD-L - DE (German)
User Manual Solis S6-EH3P(8-15)K-NV-YD-L - EN
VDE-AR-N 4105:2018 Solis S6-EH3P(8-15)K-NV-YD-L
Warranty Europa 2023 - DE (German)
Warranty Solis Warranty Europe 2025 UK only
