Solis
23 IN STOCK

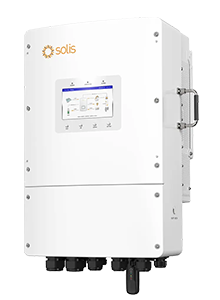

Solis 10kW Three Phase Low Voltage Hybrid Inverter
£1,240.20
ex VAT
Secure Checkout
14-Day Returns
Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements
Solis 10kW Three Phase Low Voltage Hybrid Inverter
- Solis 10kW Three Phase Low Voltage Hybrid Inverter
- Part No: SOL-S6-EH3P10K-NV-YD-L-UK
- Storage Systems - Hybrid Inverter
- Generator-compatible to extend backup duration during grid power outage
- Multiple inverters can operate together to form a microgrid
- Supports dual backup ports for intelligent control of critical and non-critical loads
- 10 seconds of 200% overload capability
- Supports a maximum input current of 20A, making it ideal for all high-power PV modules of any brand
- Ensures excellent power supply stability, keeping the load unaffected by a weak grid or generator supply fluctuations
- The battery's DC side can handle a maximum charge/discharge current of up to 290A, allowing it to store more surplus energy generated by PV systems
- Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port
Solis Three phase LV Energy Storage Inverter
Features:
Attention: This inverter is now certified for Belgium!!
High Efficiency 97.5 %More power from the same roof space
IP66 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)10 kW
Module Efficiency97.5 %
Battery Voltage40 - 60 V
MPPT Quantity2
Min MPPT Voltage200 V
Max MPPT Voltage850 V
Max Input Voltage1,000 V
Max DC Power16 kW
Max AC Power (5 min)10 kVA
Max DC Current20 A / 40 A
Max DC Inputs6
Integrated DC SwitchYes
Height660 mm
Width430 mm
Depth305 mm
Weight42 kg
IP RatingIP66
Operating Temperature-25 °C to +60 °C
Warranty5 years standard, extendable to 10, 15 or 20 years
Build your complete solar system
Everything you need in one place.
- Inverters
- Batteries
- Mounting Systems
- Cabling & Accessories
Documents & Certificates
Application Note Solis Datalogger Guide
Application Note Solis Winter Hybrid guide DE 2024 (German)
Data Sheet Solis 3PH LV Hybrid - DE (German)
Data Sheet Solis 3PH LV Hybrid - EN
Data Sheet Solis 3PH LV Hybrid - NL (Dutch)
Data Sheet Solis 3PH LV Hybrid - PL (Polish)
EN50549 Poland Solis S6-EH3P(8-15)K-NV-YD-L
EN50549 Solis S6-EH3P(8-15)K-NV-YD-L
User Manual Solis S6-EH3P(8-15)K-NV-YD-L - EN
VDE-AR-N 4105:2018 Solis S6-EH3P(8-15)K-NV-YD-L
Warranty Europa 2023 - DE (German)
Warranty Solis Warranty Europe 2025 UK only
