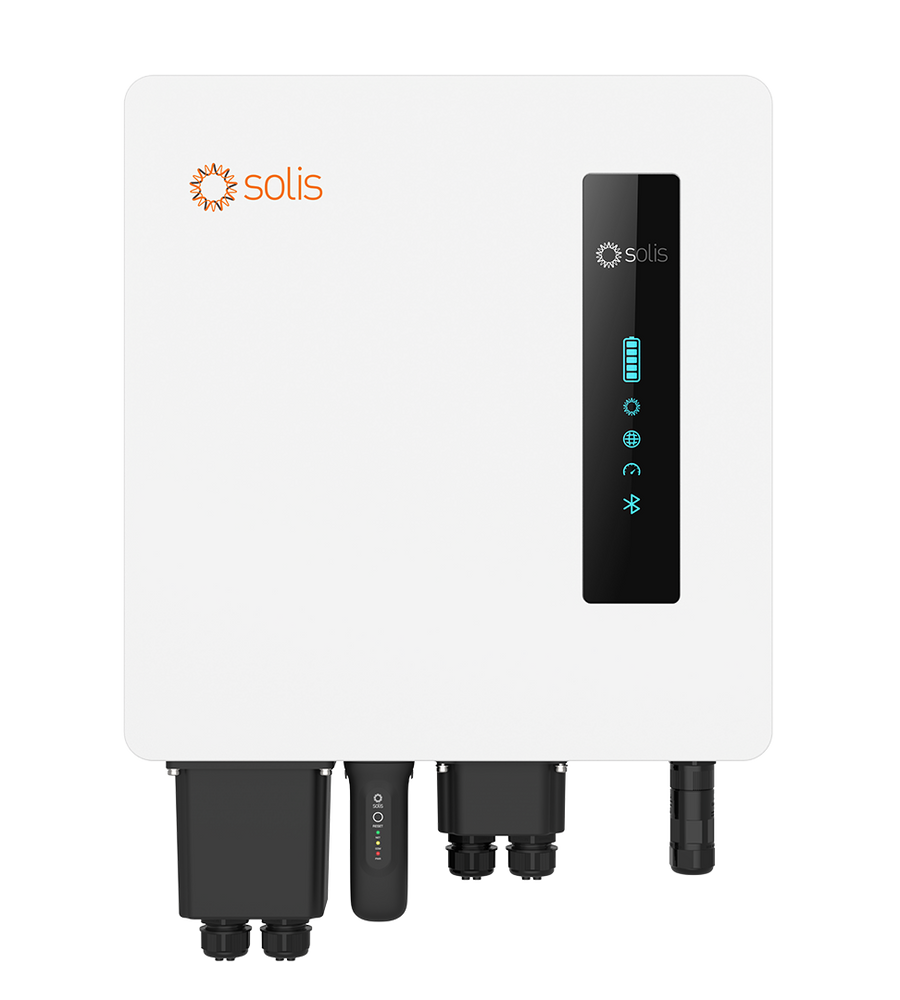

Solis Single Phase 5kW Low Voltage AC-Coupled Inverters
£522.43
ex VAT
Secure Checkout
14-Day Returns
Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements
Solis Single Phase 5kW Low Voltage AC-Coupled Inverters
- Solis Single Phase 5kW Low Voltage AC-Coupled Inverters
- Part No: SOL-S6-EA1P5K-L
- Storage Systems - Charger-Inverter
- Supports Peak Shaving Mode Industry leading to a max 125A/6kW max charge/discharge rating
- Provide intelligent time of use solution together with the monitoring group
- Increased battery protection and operation features to extend battery life
- Real-time battery monitoring, remote upgrade, and battery healing function to prolong battery life
- 40-60V battery voltage range
- 19.9kg weight
- 1P66 Ingress protection
Solis Single Phase Low Voltage AC-Coupled Inverters
S6-EA1P(3.6-6)K-L series is a new generation of AC coupled products, designed to provide photovoltaic energy storage upgrading solutions for new and existing installations
The S6 EA1P range comes with 2 x CTs in the box. The main CT can be extended to 15m. If the run from power source to inverter exceeds 15m then the SOL-METER-1PH-EASTRON is required.
Note: no EPS output / no ac back up available
IP66 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)5 kW
Battery TypeLi-ion
Battery Voltage40 - 60 V
Max AC Power (5 min)5 kVA
Height465 mm
Width440 mm
Depth192 mm
Weight19.9 kg
IP RatingIP66
