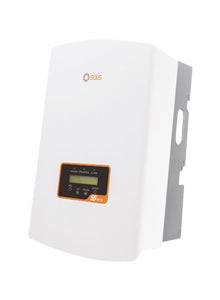

Solis 6kW S5 3 Phase Dual MPPT - DC
Product details
- Rating: 6,000W
- Phases: 3
- Max. efficiency of 98.3%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 16A PV string input x 2
- Maximum AC output power of 6.6kW
- Max PV DC Power of 9kW
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated
- DC reverse-polarity protection
- 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
Series 5 GR3P Three Phase Grid-Tied Inverter
Product Features:
Register on SolisCloud, to support remote upgrade and control.
NRS-097-2-1 Certified
Important
Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS. The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger. These items are sold separately.6 kW, balanced across phases
A three-phase string inverter for homes and small premises. It takes up to 9 kW of panels on two trackers and stays under the G98 limit.
Sizing the array
Solis recommends up to 9 kW of PV, 1.5 times the rating. Each MPPT handles one string at 16 A, 20 A short-circuit, inside 160–1,000 V. The input is limited to 1,100 V and generation starts at 180 V. Eighteen 500 W panels as two strings of nine reach 9 kW.
Fitted, and to add
- Integrated DC isolator
- DC and AC Type II surge protection
- DC arc-fault protection (AFCI), activated when commissioned
- Meter or export power manager for export control
- Monitoring logger (RS485 fitted; Wi-Fi or GPRS optional)
DNO route
8.7 A rated on each phase is within the 16 A per-phase G98 allowance. The certificates, G98 included, are in the Documents tab.
Pairs with
-
DTSD1352 meter with three CTs
The supplier notes name this meter for export control of a single S5 three-phase inverter.
-
S5 Wi-Fi logger, 4-pin
Connects on 2.4 GHz or 5 GHz and reports to SolisCloud. IP65 rated.
-
20-year GR3P warranty
A 15-year extension for S5 GR3P 3–20 kW inverters, this one included.
Buying more than one
| Pack | Units | Price | Per unit | Saving |
|---|---|---|---|---|
| Single | 1 | £575.30 | £575.30 | — |
| Pack of 3 | 3 | £1,655.99 | £552.00 | 4.1% |
| Pack of 6 | 6 | £3,277.93 | £546.32 | 5.0% |
Prices exclude VAT. Per-unit figures are worked out from the pack price.
Asked often
8.7 A rated at 400 V, 9.5 A maximum.
Yes. The supplier notes say the three-phase meter needs a data logging stick to work.
98.3% maximum, 97.7% European weighted.
Yes, three S5-GR3P6K units. A pack of 6 is available too; the table below gives the price per inverter.
