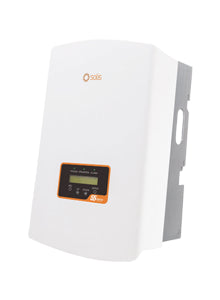

Solis 15kW S5 3 Phase Dual MPPT - DC
Product details
- Rating: 15,000W
- Phases: 3
- Max. efficiency of 98.6%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 16A PV string input x 4
- Maximum AC output power of 16.5kW
- Max PV DC Power of 22.5kW
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated
- DC reverse-polarity protection
- 5-year standard warranty
Series 5 GR3P Three Phase Grid-Tied Inverter
Product Features:
Register on SolisCloud, to support remote upgrade and control.
SA:
NRS-097-2-1 Certified, not CoCT Approved.
This model is BTO for SA, with a minimum order quantity (MOQ) of 12 units.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. ClearRay Solar will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Important
Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS. The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger. These items are sold separately.15 kW in brief
This is a small commercial size: workshops, farms, schools and larger homes on three-phase. It runs up to 22.5 kW of PV from a 15 kW rating.
Laying out 22.5 kW
The recommended PV is 1.5 times the rating. Two trackers take 32 A each (40 A short-circuit), with two string inputs apiece. Forty-five 500 W modules make 22.5 kW. Four strings of eleven (22 kW) is an even split, one pair per tracker. Tracking covers 160–1,000 V and the absolute input limit is 1,100 V.
Supplied and required
- Integrated DC switch
- DC and AC surge protection, Type II
- DC arc-fault detection, activated on commissioning
- Three-phase meter, for export limiting
- Data logging stick
G99 connection
At 21.7 A rated per phase it is well beyond G98. Submit the G99 application with the certificates from the Documents tab. If the DNO offers a lower export limit, the G100 certificate covers a meter-based limit.
Complete the system
-
Export limitation meter, three-phase
For one S5 three-phase inverter; its compatibility list covers Series 5 from 5 to 60 kW.
-
S2 Wi-Fi/LAN data stick
A 4-pin logger with a LAN option for commercial sites where Wi-Fi is unreliable.
-
20 years' cover for GR3P
The 15-year extension for Series 5 GR3PK 3–20 kW inverters.
Buying more than one
| Pack | Units | Price | Per unit | Saving |
|---|---|---|---|---|
| Single | 1 | £714.19 | £714.19 | — |
| Pack of 3 | 3 | £2,057.45 | £685.82 | 4.0% |
| Pack of 6 | 6 | £4,070.98 | £678.50 | 5.0% |
Prices exclude VAT. Per-unit figures are worked out from the pack price.
Installer FAQs
23.8 A maximum output; 21.7 A rated at 400 V.
Yes. Each has its own MPPT, so each face gets its own pair of strings.
98.1%, with 98.7% at peak.
Both are the S5-GR3P15K; only the price per unit differs, as the table below shows.
