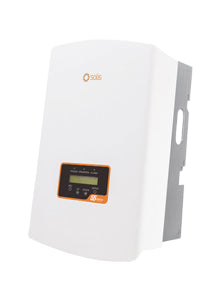

Solis 12kW S5 3 Phase Dual MPPT - DC
Product details
- Rating: 12,000W
- Phases: 3
- Max. efficiency of 98.6%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 16A PV string input x 4
- Maximum AC output power of 13.2kW
- Max PV DC Power of 18kW
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated
- DC reverse-polarity protection
- 5-year standard warranty
Series 5 GR3P Three Phase Grid-Tied Inverter
Product Features:
Register on SolisCloud, to support remote upgrade and control.
SA:
NRS-097-2-1 Certified, not CoCT Approved.
This model is BTO for SA, with a minimum order quantity (MOQ) of 12 units.
Important
Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS. The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger. These items are sold separately.Where the bigger hardware starts
At 12 kW the S5 GR3P changes. Each tracker doubles to 32 A with two string inputs, and cooling moves to fans. This is the size for bigger homes and small commercial roofs.
Four strings on two trackers
Each MPPT accepts two parallel strings, 32 A in total and 40 A short-circuit. Strings on the same tracker should match in panel count and orientation. The tracking window is 160–1,000 V with 1,100 V as the limit and start-up at 180 V. Thirty-six 500 W panels as four strings of nine give the 18 kW recommendation.
Connection approval
17.3 A rated per phase is over the 16 A G98 limit, so the DNO approves first. G99 and G100 certificates for the S5 GR3P range are in the Documents tab.
In the box, out of the box
- DC isolator integrated
- Type II surge protection on both sides
- Integrated AFCI (activation required)
- Meter for export power control
- Monitoring stick
Frequently ordered with it
-
DTSD1352 three-phase meter
Supplied with three 150 A:5 A CTs. It gives full net-power monitoring and export limitation on S5 three-phase inverters.
-
S5 4-pin Wi-Fi stick
A dual-band logger that plugs straight in and sends real-time data to SolisCloud. The meter depends on a logger.
-
S5 GR3P 10-year warranty
Five extra years for the 3–20 kW GR3P range, 12 kW included.
Buying more than one
| Pack | Units | Price | Per unit | Saving |
|---|---|---|---|---|
| Single | 1 | £611.14 | £611.14 | — |
| Pack of 3 | 3 | £1,759.94 | £586.65 | 4.0% |
| Pack of 6 | 6 | £3,483.14 | £580.52 | 5.0% |
Prices exclude VAT. Per-unit figures are worked out from the pack price.
12 kW questions
It has intelligent redundant fan cooling, where the 10 kW and smaller rely on natural convection.
17.3 A rated at 400 V, 19.1 A maximum.
No. An export-limited system of this size is still a G99 application, using a G100 export limitation scheme.
Three or six S5-GR3P12K inverters, identical to the single. The per-unit price is in the table below.
