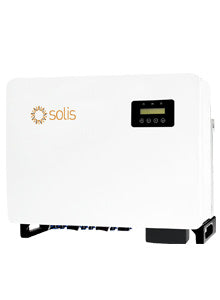

Solis 60kW S5 3 Phase 6x MPPT - DC
Product details
- Rating: 60,000W
- Phases: 3
- Max. efficiency of 98.7%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 195V and max PV input voltage of 1100V
- Max PV DC Power of 90kW
- 32A input per MPPT, 16A input for each PV string
- Maximum output power of 66kW
- 6 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
- Intelligent monitoring, Smart I-V Curve Diagnosis
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated and C5 Anti-Corrosion Level
- Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
- DC reverse-polarity protection
- Supports PLC/GPRS/WiFi communication with less wiring and reduced installation costs
- 5-year standard warranty
S5-GC60K - Series 5 Three Phase Grid-Tied Inverter
Product Features
Register on SolisCloud, to support remote upgrade and control.
SA:
NRS-097-2-1 Certified
AC Protection Box - ACDB-125A-125A-1-1 - 125A 3PH, with Power Analyser
UK: G99 Certified.
Important
Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS. The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger. These items are sold separately.Six trackers, 60 kW
The S5-GC60K is built for large commercial and agricultural roofs. It has six independent trackers, 24-hour load consumption monitoring and a C5 anti-corrosion rating for harsh or coastal air.
Twelve strings
Each of the six MPPTs takes two strings at 32 A combined, with 40 A short-circuit per tracker. Tracking runs from 180 V to 1,000 V and generation starts at 195 V. The input limit is 1,100 V. The supplier lists 90 kW as the maximum PV DC power, 1.5 times the rating.
Built in, and to buy
- DC switch for emergency shut-down and maintenance
- Type II surge protection on DC and AC (DC Type I optional)
- String monitoring, multi-peak scan and smart I-V curve diagnosis
- The meter for export limitation
- A logger (RS485 and USB on board, Wi-Fi or GPRS optional)
Connection and cabling
Rated output is 86.6 A per phase at 400 V, with 100.3 A maximum. The AC side uses OT terminals up to 70 mm². The G99 certificate for the S5 50 and 60 kW, its NI version and the three-phase G100 certificate are in the Documents tab.
Recommended add-ons
-
Three-phase meter and CT kit
Its compatibility list runs up to S5 three-phase at 60 kW, for export limitation on a single inverter.
-
RF logging device
A radio link between the inverter and a kit cabled to the router. Listed for all Solis inverters.
-
S5 GC50–60 kW warranty extension
Five years on top of the standard five, made for the 50 and 60 kW S5 GC.
Buying more than one
| Pack | Units | Price | Per unit | Saving |
|---|---|---|---|---|
| Single | 1 | £1,860.30 | £1,860.30 | — |
| Pack of 3 | 3 | £5,356.89 | £1,785.63 | 4.0% |
| Pack of 6 | 6 | £10,602.66 | £1,767.11 | 5.0% |
Prices exclude VAT. Per-unit figures are worked out from the pack price.
About the 60 kW
691 × 578 × 338 mm and 53.7 kg. Plan for a mechanical lift or a team.
Typical noise is under 55 dB(A), with intelligent fan cooling.
98.7% maximum and 98.3% European efficiency.
Three or six S5-GC60K units, the same as the single. Per-unit prices are listed below.
