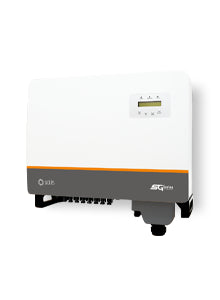

Solis 36kW S5 3 Phase Quad MPPT - DC
Product details
- Rating: 36,000W
- Phases: 3
- Max. efficiency of 98.7%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 32A input per MPPT, 16A input for each PV string
- Maximum AC output power of 39.6kW
- 4 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
- Intelligent monitoring, Smart I-V Curve Diagnosis
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated
- DC reverse-polarity protection
- 5-year standard warranty, extendable to 10 or 20-years.
S5-GC36K - Series 5 Three Phase Grid-Tied Inverter
Product Features:
Register on SolisCloud, to support remote upgrade and control.
SA: NRS-097-2-1 Certified and CoCT Approved.
UK: G99 Certified.
Important
Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS. The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger. These items are sold separately.Four trackers from 36 kW
The 36 kW adds a fourth tracker to the S5 GC design. That helps on roofs with several orientations or shading patterns, such as industrial units with multiple pitches.
Eight strings, four trackers
Each of the four MPPTs takes two strings, up to 32 A combined and 50 A short-circuit. The working range is 200–1,000 V, start-up is 180 V and the input limit is 1,100 V. Solis recommends up to 54 kW of PV. One layout is 108 panels of 500 W as eight strings, some of thirteen and some of fourteen, keeping each tracker's pair matched.
What it includes
- Integrated DC switch
- DC and AC Type II surge protection
- Intelligent string monitoring and I-V curve diagnosis
- AFCI arc-fault protection (activation required)
- A meter or export manager, for export limiting
- A monitoring logger
Getting approval
52.0 A rated per phase and 60.2 A maximum at 400 V. The DNO needs the G99 application first. The G99 certificates and the G100 export-limitation certificate are in the Documents tab.
Order with the 36 kW
-
DTSD1352 meter, 3 × 150 A CTs
For export limitation on a single S5 three-phase inverter, covering 5 to 60 kW.
-
S5 Wi-Fi stick
A 4-pin logger on 2.4 or 5 GHz Wi-Fi, reporting to SolisCloud. The meter needs a logger.
-
10-year warranty for S5 25–40 kW
Written for the 25, 30, 36 and 40 kW S5 models, so it applies here.
Buying more than one
| Pack | Units | Price | Per unit | Saving |
|---|---|---|---|---|
| Single | 1 | £1,224.07 | £1,224.07 | — |
| Pack of 3 | 3 | £3,526.15 | £1,175.38 | 4.0% |
| Pack of 6 | 6 | £6,978.83 | £1,163.14 | 5.0% |
Prices exclude VAT. Per-unit figures are worked out from the pack price.
36 kW questions
More independent MPPTs mean more roof faces or shading zones can each run at their own best point.
60.2 A, which sets the protection and cable sizing.
37 kg, the same as the rest of the S5-GC 25–40 kW range.
Yes, all S5-GC36K. The table below shows what each works out at per inverter.
