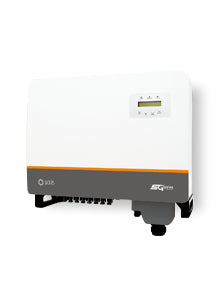

Solis 30kW S5 3 Phase Triple MPPT - DC
Product details
- Rating: 30,000W
- Phases: 3
- Max. efficiency of 98.5%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 32A input per MPPT, 16A input for each PV string
- Maximum AC output power of 33kW
- 3 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
- Intelligent monitoring, Smart I-V Curve Diagnosis
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated
- DC reverse-polarity protection
- 5-year standard warranty, extendable to 10 or 20-years.
S5-GC30K - Series 5 Three Phase Grid-Tied Inverter
Product Features:
Register on SolisCloud, to support remote upgrade and control.
SA: NRS-097-2-1 Certified and CoCT Approved.
UK: G99 Certified.
Important
Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS. The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger. These items are sold separately.30 kW commercial, three trackers
This is the largest S5 GC on the three-tracker layout. It shares its 37 kg case with the 25 kW. Typical sites are farm sheds, warehouses and school roofs up to about 45 kW of panels.
Three trackers, two strings each
Each MPPT accepts 32 A and 50 A short-circuit, split across two string inputs. Tracking runs from 200 V to 1,000 V with start-up at 180 V, and the DC input must stay under 1,100 V. Three roof faces or three rows of a ground array can each have a tracker. Ninety 500 W panels in six strings of fifteen make 45 kW, subject to a cold-weather voltage check.
Built into the S5-GC30K
- DC switch integrated
- Type II surge protection, DC and AC
- String monitoring and smart I-V curve scanning
- AFCI, activated at commissioning
- Meter, CT or export power manager
- Data logger for SolisCloud
DNO application
43.3 A rated per phase at 400 V, 50.2 A maximum. The Documents tab holds a G99 certificate issued for SOL-S5-GC30K-DC, the G99 NI certificate for the S5-GC 25–40 kW range and the three-phase G100 certificate.
Needed alongside
-
Three-phase meter with CTs
The supplier notes call for this meter for export control of one inverter. It lists the S5 three-phase range up to 60 kW.
-
Wi-Fi + 4G logger with SIM
A 4-pin S1 stick for S5 inverters. The included 5-year SIM helps on sites with no network.
-
S5 25–40 kW warranty, 20 years
A 15-year extension that names the 30 kW S5 among its models.
Buying more than one
| Pack | Units | Price | Per unit | Saving |
|---|---|---|---|---|
| Single | 1 | £1,079.80 | £1,079.80 | — |
| Pack of 3 | 3 | £3,110.36 | £1,036.79 | 4.0% |
| Pack of 6 | 6 | £6,156.21 | £1,026.04 | 5.0% |
Prices exclude VAT. Per-unit figures are worked out from the pack price.
Specifying the 30 kW
The same three-MPPT hardware, with 33 kVA of output against 27.5 kVA and 45 kW of recommended PV against 37.5 kW.
With OT ring terminals, and the case measures 647 × 629 × 252 mm.
Intelligent redundant fans, rated for −25 °C to +60 °C.
Yes, six S5-GC30K units. Packs of 3 are also listed, and the savings table below gives each per-unit figure.
