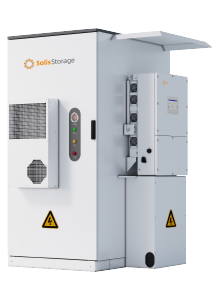

SolisStorage PrimePower 109kWh Battery with 50kW Inverter - Standard version +C5 Protection (Master

SolisStorage PrimePower 109kWh/50kW

SolisStorage PrimePower -109kWh

The PrimePower 109kWh 50kW NV from Ginlong Energy Storage is a powerful, scalable energy storage system designed for both grid-connected and off-grid applications. It integrates advanced 306Ah CATL LFP cells and a robust inverter to ensure reliable, efficient and safe energy storage.

Standard: Aerosol, explosion relief valve, fire water inlet

Optional (Pro-Version here): Combustible gas detector, explosion relief plate, audible and visual alarm

SolisCloud: Intelligent remote control, AI optimisation and instant troubleshooting – all in one platform <10 ms switchover from grid-connected to off-grid for uninterrupted power supply or <20 ms with multiple inverters connected in parallel Flexible system expansion, up to 500 kW/6.5 MWh

Design & Build

Dimensions: 1270 × 2070 × 1357 mm (with inverter)

Weight: 1393 kg total-1320 kg (Cabinet) + 73 kg (Inverter)

Noise Level: 70 dB at 1 m

Ingress Protection: IP55 (cabinet), IP66 (inverter)

Anti-Corrosion: C5 Environmental Protection

S6-EH3P50K-H (SOL-S6-EH3P50K-H)

Attention: an external ATS is needed for connecting more than 6 units in parallel, an ATS from another manufacturer can be used with these Solis units. (Solis external ATS is under development)
