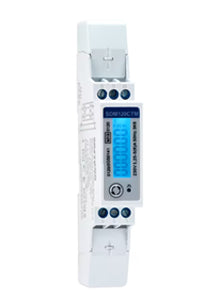

Solis Meter 1ph Eastron with external CT - SDM120CT

The Solis 1 Phase Eastron SDM120CT Smart Meter is a high-accuracy energy monitoring device designed specifically for use with compatible Solis single-phase hybrid and grid-tied inverters. Supplied with an external Current Transformer (CT), this meter provides precise real-time measurement of electricity import, export and household consumption, allowing your inverter to intelligently manage power flow throughout your property.

Ideal for residential solar PV installations, the SDM120CT enables advanced energy management features including export power limitation, self-consumption optimisation and accurate monitoring of grid energy usage. By measuring the power flowing at your property's grid connection, the Solis inverter can prioritise solar generation, battery charging and household loads to maximise energy independence.

This meter communicates directly with compatible Solis inverters via RS485 Modbus communication, providing fast and reliable data transfer. It is commonly required when configuring export limitation settings or when installing battery storage systems where accurate whole-home energy monitoring is essential.

Key Features

• Designed for compatible Solis single-phase hybrid and string inverters.
• Includes external Current Transformer (CT).
• Accurate real-time monitoring of import and export energy.
• Supports export power limitation functionality.
• Optimises solar self-consumption and battery charging.
• RS485 Modbus communication interface.
• Compact DIN rail mounted design.
• Simple installation and commissioning.
• Ideal for domestic solar PV and battery storage systems.

Applications

The Solis SDM120CT meter is commonly installed alongside Solis hybrid inverters to provide accurate whole-home energy monitoring. It is suitable for:

• Solar PV systems.
• Battery storage installations.
• Export limitation compliance.
• Self-consumption optimisation.
• Residential energy monitoring.

Technical Overview

• Model: SDM120CT
• Part Number: SOL-METER-1PH-EASTRON
• Phase: Single Phase (230V)
• Communication: RS485 (Modbus RTU)
• Current Measurement: External CT Clamp (included)
• Mounting: DIN Rail

Compatibility

The Solis Eastron SDM120CT is compatible with a wide range of Solis single-phase hybrid inverters, including selected S5 and S6 Energy Storage (EH1P) models that support external smart metering. Always verify compatibility with your specific inverter model before purchase.

What's Included

• 1 × Solis Eastron SDM120CT Single-Phase Smart Meter
• 1 × External Current Transformer (CT)

The Solis SDM120CT Smart Meter is an essential accessory for installers and homeowners looking to maximise the performance of their Solis solar and battery storage system through accurate energy monitoring, intelligent export control and enhanced self-consumption.
