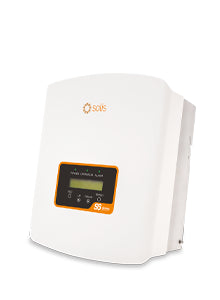

S6 Mini 3,6kW 1MPPT 1Ph Inverter - with DC isolator
Product details
- Rating: 3,600W
- Phases: 1
- Super high frequency switching technology with maximum efficiency of 97.3%
- Max PV Power of 5.4kW
- DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
- Wide voltage range - Ultra low start-up voltage of 90V and max PV input voltage of 500V
- Intergrated Export Power Manager (EPM)
- Integrated AFCI (DC arc-fault circuit protection)
- Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
- 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.
Product Features
Important
Please note that this inverter does not include a data logger or CT. For one inverter deployment, use CT "SOL-CT-100A-10M" For more than one inverter deployment, use EPM1 EPM1 or the CT requires a separate data logger. These items are sold separately.Biggest in the Mini range
The 3.6 kW Mini is sized to the top of G98. It is as much inverter as a single-phase home can connect without a DNO application.
Why exactly 3.6 kW
The single-phase G98 limit is 16 A per phase, about 3.68 kW. This model's rated grid output current is 16 A, with 3.6 kVA maximum output. Anything larger on one phase means a G99 application or a G100 export-limiting scheme.
Panels and strings
Solis recommends up to 5.4 kW of PV, 1.5 times the rating. The single tracker has two string inputs at 19 A and a 30 A short-circuit rating. It works between 80 V and 500 V, with 600 V as the absolute limit. Twelve 450 W modules in two strings of six reach 5.4 kW.
Built in, and not
- Isolating DC switch integrated
- EPM export control on board
- AFCI protection against DC arcing (activation required)
- The CT for the EPM
- A data stick, if you want SolisCloud monitoring
Approval
Install and notify. Keep any further generation on the same supply in mind, as it counts towards the 3.68 kW total. The G100 certificate issued for SOL-3.6-MINI-S6-DC is in the Documents tab.
Pair it with
-
Export CT, 100 A
Listed as required for export limitation on single-phase S6 inverters, with a 10 m cable.
-
GPRS data stick
Monitoring over the mobile network for any Solis model, which suits sites with no reliable broadband. Supply your own SIM.
-
Solis 10-year warranty
A 5-year extension that applies across the S6 Mini range.
Buying more than one
| Pack | Units | Price | Per unit | Saving |
|---|---|---|---|---|
| Single | 1 | £250.91 | £250.91 | — |
| Pack of 5 | 5 | £1,215.11 | £243.02 | 3.1% |
| Pack of 10 | 10 | £2,406.03 | £240.60 | 4.1% |
| Pallet of 24 | 24 | £5,713.53 | £238.06 | 5.1% |
Prices exclude VAT. Per-unit figures are worked out from the pack price.
Questions about the 3.6
Not on top of this one. It already uses the full 16 A allowance, so extra generation needs G99 or export limiting under G100.
Size it from the 16 A maximum output current and your wiring regulations.
Joint top, at 97.3% peak, alongside the 3 kW model.
Yes, 24 units of the S6-GR1P3.6K-M. Packs of 5 and 10 sit between single and pallet. See the per-unit prices below.
