S6 3kW 2MPPT 1PH Inverter - with DC isolator
Solis 1 IN STOCK

S6 3kW 2MPPT 1PH Inverter - with DC isolator

SOL-3.0-S6-DT-EU-DC
£263.80 ex VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

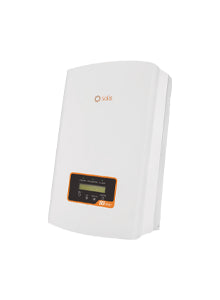

Solis S6 3kW 2MPPT 1PH Inverter - with DC isolator

S6 3kW 2MPPT 1PH Inverter - with DC isolator
Part No: SOL-3.0-S6-DT-EU-DC
Inverters - Main Units
  • Rating: 3,000W
  • Phases: 1

Solis Series 6 is the latest generation of grid-tied residential inverters from Solis. This range of inverters are leaders in affordable small residential rooftop installations.

Product Features

  • Super high frequency switching technology with maximum efficiency of 97.1%
  • Max PV Power of 4.5kW
  • DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
  • Wide voltage range - Ultra low start-up voltage of 90V and max PV input voltage of 600V
  • Intergrated Export Power Manager (EPM)
  • Integrated AFCI (DC arc-fault circuit protection)
  • Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
  • 5-year standard warranty, extendable to 10 or 20-years!

SA: NRS-097 certified

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. ClearRay Solar will not be held liable for any product malfunctions as a result of incorrectly installed systems.

Note: SOL-3.0-S6-DT-EU-DC Without Export Limitation Function as this inverter only comes with CTs. A meter is required for export limitiation.

High Efficiency 97.3 %More power from the same roof space
IP66 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)3 kW
Module Efficiency97.3 %
MPPT Quantity2
Min MPPT Voltage50 V
Max MPPT Voltage450 V
Max Input Voltage550 V
Max DC Power4.5 kW
Max AC Power (5 min)3.3 kVA
Surge AC Power (1 sec)3,300 W
Max DC Current14 A / 14 A
Max DC Inputs2
Integrated DC SwitchYes
Height543 mm
Width310 mm
Depth160 mm
Weight11 kg
ConnectorMC4
IP RatingIP66
Operating Temperature-25 °C to +60 °C
Warranty5 years standard, extendable to 10, 15 or 20 years
