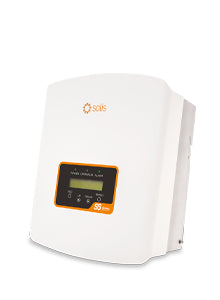

S6 Mini 3.0kW 1MPPT 1PH Inverter - with DC isolator
Solis 44 IN STOCK

S6 Mini 3.0kW 1MPPT 1PH Inverter - with DC isolator

SOL-3.0-MINI-S6-EU-DC
£272.41 ex VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

Solis S6 Mini 3.0kW 1MPPT 1PH Inverter - with DC isolator

S6 Mini 3.0kW 1MPPT 1PH Inverter - with DC isolator
Part No: SOL-3.0-MINI-S6-EU-DC
Inverters - Main Units
  • Rating: 3,000W
  • Phases: 1

The All New Solis Mini 6S Series Grid-tie Inverter. Compact and lightweight design, for easy installation. Fanless, minimal noise, producing less than 20 dBA. Compatible with high-efficiency modules and bi-facial modules.

SOL-3.0-MINI-S6-EU-DC Without Export Limitation Function as this inverter does not work with a CT so a meter is required for export limitiation.

Product Features

  • Super high frequency switching technology with maximum efficiency of 96.6%
  • Max PV Power of 2.3kW
  • DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
  • Wide voltage range - Ultra low start-up voltage of 60V and max PV input voltage of 600V
  • Intergrated Export Power Manager (EPM)
  • Integrated AFCI (DC arc-fault circuit protection)
  • Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
  • 5-year standard warranty (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
High Efficiency 97.3 %More power from the same roof space
IP66 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)3 kW
Module Efficiency97.3 %
MPPT Quantity1
Min MPPT Voltage80 V
Max MPPT Voltage500 V
Max Input Voltage600 V
Max DC Power4.5 kW
Max AC Power (5 min)3.3 kVA
Surge AC Power (1 sec)1,650 W
Max DC Current19 A
Max DC Inputs2
Integrated DC SwitchYes
Height373 mm
Width310 mm
Depth160 mm
Weight7.7 kg
ConnectorMC4
IP RatingIP66
Operating Temperature-25 °C to +60 °C
Warranty5 years standard, extendable to 10, 15 or 20 years

Build your complete solar system

Everything you need in one place.

  • Inverters
  • Batteries
  • Mounting Systems
  • Cabling & Accessories
Build a system
Documents & Certificates
Application Note Solis Datalogger Guide Application Note Solis Inverters - RCD - Recommendation CE Declaration of Conformity EN61000_Certificate of conformity (2021) Data Sheet S6-GR1P(0.6-3.6)K-M - DE
