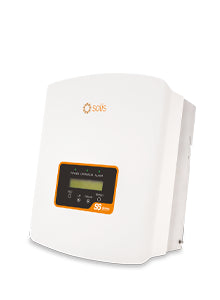

S6 Mini 3kW 1MPPT 1Ph Inverter - with DC isolator
Product details
- Rating: 3,000W
- Phases: 1
- Super high frequency switching technology with maximum efficiency of 97.1%
- Max PV Power of 4.5kW
- DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
- Wide voltage range - Ultra low start-up voltage of 90V and max PV input voltage of 600V
- Intergrated Export Power Manager (EPM)
- Integrated AFCI (DC arc-fault circuit protection)
- Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
- 5-year standard warranty, extendable to 10 or 20-years! (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
Solis Series 6 is the latest generation of grid-tied residential inverters from Solis. This range of inverters are leaders in affordable small residential rooftop installations.
Product Features
SA: NRS-097 certified
Important
Please note that this inverter does not include a data logger or CT. For one inverter deployment, use CT "SOL-CT-100A-10M" For more than one inverter deployment, use EPM1 EPM1 or the CT requires a separate data logger. These items are sold separately.Headline specs
This is the Mini for a typical family home. A 3 kW rating with room for 4.5 kW of panels lets the array run 50% above the inverter, which helps on dull days.
Laying out the panels
You get two string connections on one tracker, 19 A in and 30 A short-circuit. Tracking runs from 80 V to 500 V, start-up is at 90 V and the input tops out at 600 V. Ten 450 W panels make 4.5 kW, as two strings of five or one string of ten, if the string voltage stays inside the window.
Supplied with
- A DC switch in the unit for PV isolation
- Export Power Manager, so export can be capped from day one
- Arc-fault circuit protection, activated during commissioning
- The current clamp that the EPM relies on
- A monitoring stick (Wi-Fi or GPRS, optional)
Do you need permission?
At 13 A rated output on 230 V, the 3 kW Mini is inside the 3.68 kW single-phase G98 limit. Its own G100 certificate, issued for SOL-3.0-MINI-S6-DC, sits in the Documents tab.
Worth adding
-
10 m, 100 A current transformer
Its listing covers single-phase S6 units and states the export limiting feature needs it.
-
Solis RF logging set
Two parts, an RF kit wired to the router and an RF stick on the inverter, for SolisCloud without Wi-Fi set-up.
-
20-year total warranty
Solis's 15-year extension written for the S6 Mini series.
Buying more than one
| Pack | Units | Price | Per unit | Saving |
|---|---|---|---|---|
| Single | 1 | £194.45 | £194.45 | — |
| Pack of 5 | 5 | £943.59 | £188.72 | 2.9% |
| Pack of 10 | 10 | £1,867.47 | £186.75 | 4.0% |
| Pallet of 24 | 24 | £4,434.80 | £184.78 | 5.0% |
Prices exclude VAT. Per-unit figures are worked out from the pack price.
Good to know
Output is capped at 3.3 kVA. Extra PV mainly lifts production in the mornings, evenings and winter, and Solis recommends up to 4.5 kW for this model.
15.7 A, which is the figure to size the AC breaker and cable against.
Yes, an LCD on the front, plus RS485 for wired communication.
None in the hardware. Every pack and the pallet of 24 hold the S6-GR1P3K-M; compare the per-unit prices in the table.
