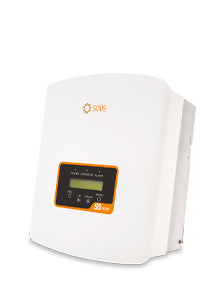

S6 Mini 2kW 1MPPT 1PH Inverter - with DC isolator
Solis OUT OF STOCK

S6 Mini 2kW 1MPPT 1PH Inverter - with DC isolator

SOL-2.0-MINI-S6-EU-DC
£260.59 ex VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

Solis S6 Mini 2kW 1MPPT 1PH Inverter - with DC isolator

S6 Mini 2kW 1MPPT 1PH Inverter - with DC isolator
Part No: SOL-2.0-MINI-S6-EU-DC
Inverters - Main Units
  • Rating: 2,000W
  • Phases: 1

Note: SOL-2.0-MINI-S6-EU-DC Without Export Limitation Function as this inverter does not work with a CT so a meter is required for export limitiation.

Solis Series 6 is the latest generation of grid-tied residential inverters from Solis. This range of inverters are leaders in affordable small residential rooftop installations.

Product Features

  • Super high frequency switching technology with maximum efficiency of 96.6%
  • Max PV Power of 3kW
  • DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
  • Wide voltage range - Ultra low start-up voltage of 60V and max PV input voltage of 600V
  • Intergrated Export Power Manager (EPM)
  • Integrated AFCI (DC arc-fault circuit protection)
  • Integrated DC switch for safe PV maintenance
  • 5-year standard warranty, extendable to 10 or 20-years!

SA: NRS-097 certified.

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. ClearRay Solar will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Note: This inverter can be reduced in power with the agreement of the energy supplier in order to comply with possible regulations of a balcony power plant in your country. For this purpose, the document "Manufacturer Power Limit Declaration" issued by Solis (filed under Documentation) must be completed and sent to that energy supplier. In addition, please note that the inverter is connected with at least 2.5 mm² in the distribution. Please refer to the corresponding manual when setting up the inverter.
High Efficiency 97.1 %More power from the same roof space
IP66 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)2 kW
Module Efficiency97.1 %
MPPT Quantity1
Min MPPT Voltage50 V
Max MPPT Voltage500 V
Max Input Voltage600 V
Max DC Power3 kW
Max AC Power (5 min)2.2 kVA
Surge AC Power (1 sec)1,100 W
Max DC Current14 A
Max DC Inputs1
Integrated DC SwitchYes
Height373 mm
Width310 mm
Depth160 mm
Weight7.4 kg
ConnectorMC4
IP RatingIP66
Operating Temperature-25 °C to +60 °C
Warranty5 years standard, extendable to 10, 15 or 20 years
