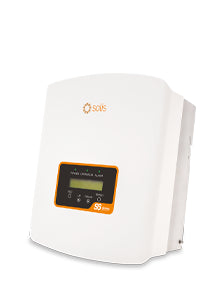

S6 Mini 1kW 1MPPT 1PH Inverter - with DC isolator
Product details
- Rating: 1,000W
- Phases: 1
- Super high frequency switching technology with maximum efficiency of 96.6%
- Max PV Power of 1.5kW
- DRM (Demand Response Mode) integrated and backflow power control function for smart grid requirements.
- Wide voltage range - Ultra low start-up voltage of 60V and max PV input voltage of 600V
- Intergrated Export Power Manager (EPM)
- Integrated AFCI (DC arc-fault circuit protection)
- Integrated DC switch for safe PV maintenance
- 5-year standard warranty, extendable to 10 or 20-years! (10-year standard warranty for the Netherlands, Belgium, France, Germany, Poland, Italy)
Solis Series 6 is the latest generation of grid-tied residential inverters from Solis. This range of inverters are leaders in affordable small residential rooftop installations.
Product Features
SA: NRS-097 certified.
Important
Please note that this inverter does not include a data logger or CT. For one inverter deployment, use CT "SOL-CT-100A-10M" For more than one inverter deployment, use EPM1 EPM1 or the CT requires a separate data logger. These items are sold separately.Key figures
Made for small roofs: a garage, a garden office, a porch or an outbuilding. The S6-GR1P1K-M is rated at 1 kW and delivers up to 1.1 kVA.
Sizing the string
There is one tracker with one input, rated for 14 A. Solis recommends up to 1.5 kW of panels, which works out as three 450 W modules or four 375 W ones. Tracking runs from 50 V to 500 V. The low 60 V start-up suits a short string like that. Keep the cold-weather open-circuit voltage under the 600 V input maximum.
What comes with it
- DC isolator built into the case
- Export Power Manager (EPM) integrated, so export can be capped
- Arc-fault protection (AFCI), activated at commissioning
- The CT clamp the EPM measures with
- A monitoring stick; RS485 is on board, and Wi-Fi or GPRS are optional
Connecting to the grid
1 kW on a single-phase supply sits far inside the 3.68 kW G98 limit, so nothing needs approving before the install. A G100 certificate issued for SOL-1.0-MINI-S6-DC is in the Documents tab if the DNO asks about export limiting.
Add to the order
-
Current transformer, 100 A, 10 m lead
The clamp the built-in EPM reads. Its own listing says export limitation will not work without it.
-
RF data logging kit
Cabled to the router and linked to the inverter by radio, so there is no Wi-Fi network to configure.
-
15-year warranty extension
Brings an S6 Mini to 20 years in total. Put the serial number in the order notes.
Buying more than one
| Pack | Units | Price | Per unit | Saving |
|---|---|---|---|---|
| Single | 1 | £147.86 | £147.86 | — |
| Pack of 5 | 5 | £715.98 | £143.20 | 3.2% |
| Pack of 10 | 10 | £1,417.63 | £141.76 | 4.1% |
| Pallet of 24 | 24 | £3,366.65 | £140.28 | 5.1% |
Prices exclude VAT. Per-unit figures are worked out from the pack price.
Before you buy
Up to 1.5 kW of panels on its single string, which is the datasheet's recommended maximum.
Yes. The EPM is part of the inverter, so the only addition is the 100 A CT at the supply.
310 × 373 × 160 mm and 7.4 kg, rated IP66 for outdoor walls.
No. The packs of 5 and 10 and the pallet of 24 all contain the S6-GR1P1K-M. The table below shows the price per unit for each.
