1 IN STOCK

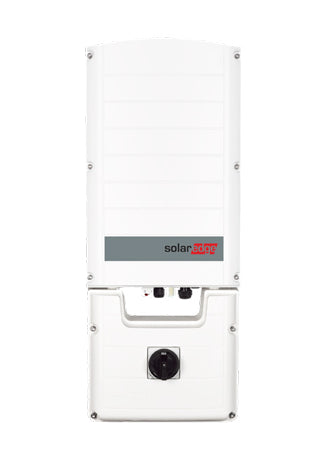

Three Phase Inverter, 30kW, MC4, DC safety unit with switch, AC & DC SPD, AC/DC Segregation
£1,517.99
ex VAT
Secure Checkout
14-Day Returns
Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements
SolarEdge Three Phase Inverter, 30kW, MC4, DC safety unit with switch, AC & DC SPD, AC/DC Segregation
- Three Phase Inverter, 30kW, MC4, DC safety unit with switch, AC & DC SPD, AC/DC Segregation
- Part No: SE30K-RW00IBNJ4
- Inverters - Main Units
- Rating: 30,000W
- Phases: 3
- Built-in module level monitoring with Ethernet, wireless and GSM communication
- Easy config using smartphone and SolarEdge SetApp
- Small and light to install
- Type 2 DC and AC surge protection
- Arc Fault protection
- IP65
- DC safety unit for external DC Isolators
- Compatible with S1200 Optimisers
Three Phase Inverter, 30kW, Glands, DC safety unit with switch, AC & DC SPD, Fuses, RSD, Inverters with SetApp configuration
SE30K-RWR0IBNZ4
These are outstanding inverters for medium to large commercial rooftop and ground mount installs
Product Features
High Efficiency 98.3 %More power from the same roof space
IP65 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)29,990 W
Module Efficiency98.3 %
Min MPPT Voltage13 V
Max MPPT Voltage60 V
Max Input Voltage1,000 V
Max DC Power52,500 W
Max AC Power (5 min)29,990 W
Surge AC Power (1 sec)29,990 W
Max DC Current43.5 Adc
Max DC Inputs4.0
Integrated DC SwitchYes
IP RatingIP65
Warranty12 years standard, extendable to 20 years
Build your complete solar system
Everything you need in one place.
- Inverters
- Batteries
- Mounting Systems
- Cabling & Accessories
Documents & Certificates
Application Note AC Relay Control
Application Note Alternative Power
Application Note Grid Support
Application Note Three Phase Wire grids
Application Note Upgrade from Micro SD
CE Declaration of Conformity SE 25KW CE
Data Sheet German
Data Sheet Optimizers
Data Sheet SE-25-30-33 with RSD
Data Sheet SolarEdge 25-33.3kW 30A EN
G100 certification Amend 2 SolarEdge 3PH 25K-100K
G99 Certificate
G99 Certificate
IEC Certificate
Installation Manual Three Phase System V1.7 Europe
Technical Data EMI Performance
Technical Data Sunspec Tech note DE
Test Certificate IP65
VDE V 0126
VDE-AR-N 4105:2018 Solaredge 25-33k (German)
Warranty January 2026
