Energy Storage Solution for Commercial and Industrial Sites

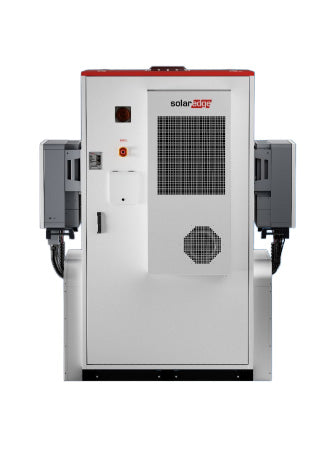

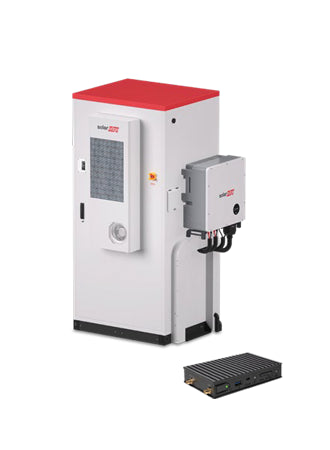

The CSS-OD battery cabinet and 50kW inverter are designed for easy installation to reduce time onsite, and include advanced battery safety technology for maximum system protection. Powered by SolarEdge ONE for C&I, the CSS-OD enables optimized energy production for a wide range of sectors and needs.

Easy Installation and Deplyment

• Pre-assembled and factory-tested cabinet for quick setup
• Compact cabinet that can be installed indoors or outdoors
• Customize your AC-Coupled sites with up to 2 batteries per inverter, and scale by up to 1MWh

Optimized Storage Savings

• Powered by the SolarEdge ONE optimization platform that constantly manages site energy production, storage and consumption
• Supports multiple optimization modes such as: SelfConsumption, Peak Shaving, and Tariff Optimization
• Supports microgrid applications

Built-in Safety and Resilience

• Integrated fire detection and double fire suppression mechanism
• Built-in safeguards: earth fault, leakage fault, and integrated DC & AC surge protection
• Reverse polarity protection
• Dual-string design for higher resiliency
• Multi-sensor security: flood, door, and heat sensors

Single Trusted Vendor

• PV and storage system from a single vendor
• One source for warranty, support, and training
• 10-year product and performance warranty

Considerations:

• A single controller is required per site and can operate multiple units.
• SolarEdge do not suggest installing the unit within 2km of the sea.
• It is recommended to maintain a consistent ratio of 1:1 or 2:1 of Battery Cabinets to Battery Inverter within the site to ensure optimal performance.
• Only AC couples with other products SolarEdge systems.

Supplier Links:

SolarEdge have provided the below links as they're documents are subject to change, the most up to date information can be found below.

Datasheet

Quick Installation Guide

Warranty
