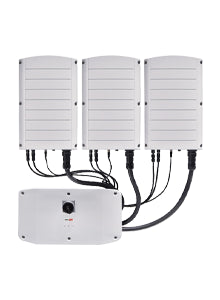

90kW Synergy Manager SWITCH DC Switch, MC4, DC SPD
SolarEdge 1 IN STOCK

90kW Synergy Manager SWITCH DC Switch, MC4, DC SPD

SE-90000-SWITCH-FULL
£3,027.12 ex VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

SolarEdge 90kW Synergy Manager SWITCH DC Switch, MC4, DC SPD

90kW Synergy Manager SWITCH DC Switch, MC4, DC SPD
Part No: SE-90000-SWITCH-FULL
Inverters - Main Units
  • Rating: 90,000W
This part is made up of the following items:
3 x SE-SYNERGY-RSD Synergy Secondary Unit with RapidShutdownDevice
1 x SE-90000-MNGR-S 90kW Synergy Manager SWITCH with DC Switch, MC4, DC SPD

Three Phase Synergy Inverter

Main features:

  • Pre-commissioning feature for automated validation of system components and wiring during the site installation process and prior to grid connection.
  • Easy 2-person installation with lightweight, modular design (each inverter consists of 2 or 3 Synergy Units and one Synergy Manager).
  • Independent operation of each Synergy Unit enables higher uptime and easy serviceability.
  • Built-in thermal sensors detect faulty wiring ensuring enhanced protection and safety.
  • Built-in arc fault protection and optional rapid shutdown (depending on Synergy Manager used)
  • Built-in PID mitigation for maximized system performance.
  • Monitored and field-replaceable surge protection devices: integrated RS485 and Type 2 DC SPDs, optional Type 2 AC SPD.
  • Integrated DC safety switch eliminates the need for external DC isolators.

Please note FULL parts consist of 1x Synergy Manager and 2x Synergy Units ( 3x for 90 and 100kW)
Some documents are currently missing. These will be added as soon as available.
High Efficiency 98 %More power from the same roof space
Technical Specifications
Rated Power (Pmax)90,000 W
Module Efficiency98 %
Max Input Voltage1,000 V
Max DC Power157,500 W
Max AC Power (5 min)90,000 W
Surge AC Power (1 sec)90,000 W
Max DC Current130.5 A
Max DC Inputs12.0
Integrated DC SwitchYes
Warranty12 years standard, extendable to 20 years
