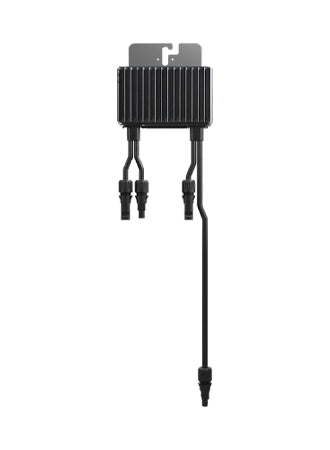

S1400 Power Optimizer (Short Input 0.1m)
SolarEdge OUT OF STOCK

S1400 Power Optimizer (Short Input 0.1m)

S1400-MC4
£47.90 ex VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

SolarEdge S1400 Power Optimizer (Short Input 0.1m)

S1400 Power Optimizer (Short Input 0.1m)
Part No: S1400-MC4
Inverters - Optimisers
  • Phases: 1
Input Length:0.1m Output Length: 5.7m+ / 0.1m-
  • Specifically designed to work with SolarEdge Comercial inverters
  • Mitigates all types of module mismatch loss, from manufacturing tolerance to partial shading
  • Faster installations with simplified cable management and easy assembly using a single bolt
  • Detects abnormal PV connector behavior, preventing potential safety issues
  • Module-level voltage shutdown for installer and firefighter safety
  • Flexible system design for maximum space utilization
  • Compatible with bifacial PV modules
  • Superior efficiency (99.5%)
Note: S1400 Power Optimizers are rated up to 24A for output current. Therefore, they are NOT suitable to be used with SolarEdge Inverter models that have integrated 25A or 30A DC-fuses. To replace these fuses you will require the part SE-FLD-3PH-NEUTRAL-LINK to replace these fuses to allow the S1400 to be compatible with the Manager inverters.

Important

If paired with any of the fused commercial inverters, The customer is required to replace the fuses inside with SE-FLD-3PH-NEUTRAL-LINK. 1 for each fuse. 4x SE-FLD-3PH-NEUTRAL-LINK per Manager unit
High Efficiency 99.5 %More power from the same roof space
IP68 / NEMA6P RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)1,400 W
Module Efficiency99.5 %
MPPT Quantity1
Min MPPT Voltage12.5 V
Max MPPT Voltage105 V
Max Input Voltage125 V
Max DC Current20 A
Max DC Inputs1
Integrated DC SwitchNo
Height165 mm
Width129 mm
Depth52 mm
Weight1,087 g
ConnectorMC4
Cable LengthInput 0.1 m, output 5.7 m (+) / 0.1 m (-)
IP RatingIP68 / NEMA6P
Operating Temperature-40 °C to +85 °C
Warranty25 years

Build your complete solar system

Everything you need in one place.

  • Inverters
  • Batteries
  • Mounting Systems
  • Cabling & Accessories
Build a system
Documents & Certificates
Application Note – Connecting Two Modules in Parallel using a SingleInput Power Optimizer and a Branch Cable Application Note Optimiser Inter-compatibility CE Declaration of Conformity SolarEdge S Series Optimisers Data Sheet S1400 Power Optimizer EN
