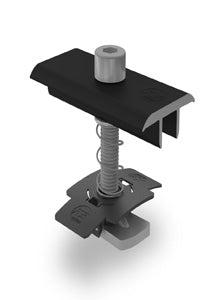

K2 XS Module Centre Clamp Black Anodised 30mm Frames
Product details
A centre clamp set for the thinnest frames on the market: 30 mm, which is where most of the current all-black modules sit. Black anodised, so on a black-framed panel the fixing disappears into the array.
The XS is a single-size clamp, not an adjustable one. It fits 30 mm and nothing else – which is what keeps it small enough to stay out of sight.
Check the frame first
Take the frame height from the module datasheet rather than assuming. A 30 mm clamp on a 35 mm frame will not close, and on a 30 mm frame a wider clamp leaves the panel loose. K2 also state that this clamp is not compatible with the K2 Dome 6 system, which uses its own DomeClamp range.
Finish
Aluminium EN AW 6063 T66 with stainless steel and TPE/PA. K2 note that the anodising may show slight scratches from packaging and transport – cosmetic, on a part that ends up between two panels.
Order alongside
-
K2 XS Clamp EC Black Set 35
The end clamp in the same family – every row needs both centre and end clamps.
-
K2 XS Clamp MC Black Set 33-35
The centre clamp for 33-35 mm frames, if your panel is deeper than 30 mm.
-
K2 T-Bolt 20/12 M8x20 (Pack of 100)
The bolt that drops into the SingleRail side chamber to hold the clamp.
-
K2 Hexagon Flange Nut M8 (Pack of 100)
The matching nut, serrated so it does not work loose.
-
K2 DomeClamp Middle Clamp 30-50mm Black
The Dome 6 alternative, since the XS clamp is not compatible with that system.
Questions on the XS centre clamp
Only if the frame is 30 mm deep. That figure is on the module datasheet, usually as the frame height or module thickness.
Centre clamps sit between two panels and hold both. End clamps finish each end of a row. A row of six panels takes five centre clamps and two end clamps.
No. K2 state it is not compatible with Dome 6, which has its own DomeClamp range – linked above.
The T-bolt and nut are ordered separately and are linked above.
