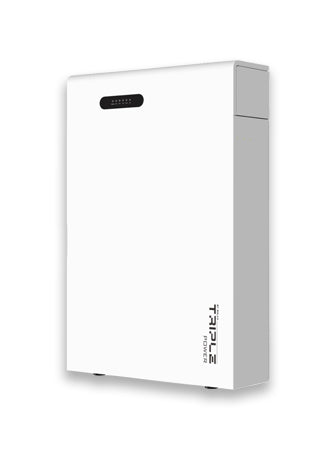

SolaX Triple Power HV 5.8kWh Heated LFP Main Battery MASTER V3

The T-BAT H 5.8 V3 delivers up to 95% depth of discharge and over 6,000 cycles, ensuring long-lasting, efficient energy storage. Its IP66 rating provides reliable operation in harsh environments, while its design avoids toxic heavy metals and caustic materials for a more eco-friendly solution.

With flexible wall or floor mounting options, the compact system enables quick installation, optimises space, and reduces self-consumption—making it a practical and dependable choice for residential energy storage.

High Performance

• Max expandable to 6 units with 34.6kWh capacity for single cluster
• 95% Depth of Discharge (DOD)
• Ultra-long lifespan, ensuring consistent performance and long-term reliability: Cycle life > 6000 cycle
• Flexible Heating: The T58-V3 features flexible two-level battery heating, designed to meet diverse user needs for optional performance

Assured Reliability

• Aerosol fire suppression for precise protection
• lP66 Ingress protection
• No toxic heavy metals or caustic materials
• LFP battery cell & high-performance processors

Smart Management

• Remote fault diagnosis, upgrade and maintenance
• Flexible Adaptability
• Floor or wall mounting optional

Please Note:

Up to 2 Slave batteries can be used with 1x Master in a single-phase system (Maximum 3 batteries in total)

Up to 5 Slave batteries can be used with 1× Master battery three-phase systems (max 6 batteries total)

• V1 batteries are not compatible with V3 batteries.
• V3 batteries can be installed on existing V2 systems, but full functionality is only guaranteed when all batteries are the same generation.
• Heating is only available when both the master and slave batteries are V3. Heating function will not operate in mixed V2/V3 systems.
• If mixing V2 and V3 in a single battery stack, a V3 master battery is recommended. If a V2 master battery is used, a firmware update to the master will be required.
• V2 and V3 batteries cannot be mixed when using the BMS Parallel Box. Each parallel battery string must contain identical battery versions and quantities.
