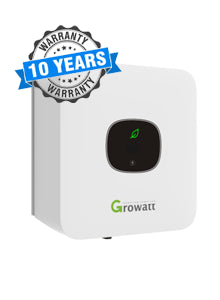

GROWATT MIC 2500TL X2 Single MPPT with Arc Fault Protection
Growatt 54 IN STOCK

GROWATT MIC 2500TL X2 Single MPPT with Arc Fault Protection

GROWATT-MIC2500-TL-X2-AFP
£256.28 ex VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

GROWATT MIC 2500TL X2 Single MPPT with Arc Fault Protection

GROWATT MIC 2500TL X2 Single MPPT with Arc Fault Protection
Part No: GROWATT-MIC2500-TL-X2-AFP
Inverters - Main Units
  • Rating: 2,500W
  • Phases: 1

Growatt inverters are designed specifically for residential rooftop applications. With a maximum efficiency of 97% and a wide input voltage range, this robust inverter is perfect for residential installations. The TL-X2 range has a single MPPT.

The Growatt inverter range has the following leading-edge technology.

  • MPPT tracking accuracy of 99%
  • Max. Efficiency 97.6%, European Efficiency 96.5%
  • Transformerless design, offer lighter and more convenient installation
  • Power factor continuously adjustable
  • Flexible interface
  • Touch key & OLED display


UK: The Installer Code Policy is in the process of being introduced in the UK and Ireland. It means all installers will need to register an ‘Installer Code’ for using the Growatt monitoring platform. This installer code can be provided to the end user by the installer to allow for the viewing of your customers devices from your installer-level monitoring account. For more information, please refer to the following document: Growatt Installer Code policy

Please note: In order to achieve anti reflux function on TL-X and TL-XE range, you must use Meter SPM-E. Using a CT clamp to try and achieve this is not possible. Please contact us for more details.

High Efficiency 97.6 %More power from the same roof space
IP65 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)2,500 W
Module Efficiency97.6 %
MPPT Quantity1
Min MPPT Voltage65 V
Max MPPT Voltage550 V
Max Input Voltage550 V
Max DC Power3,500 W
Max AC Power (5 min)2,500 VA
Surge AC Power (1 sec)2,500 W
Max DC Current13 A
Max DC Inputs1
Integrated DC SwitchYes
Height254 mm
Width274 mm
Depth138 mm
Weight6.2 kg
ConnectorH4 / MC4
IP RatingIP65
Operating Temperature-25 °C to +60 °C
Warranty5 years standard, 10 years optional

Build your complete solar system

Everything you need in one place.

  • Inverters
  • Batteries
  • Mounting Systems
  • Cabling & Accessories
Build a system
Documents & Certificates
-- Application Note TL-X Series Brochure Growatt UK Products Brochure CE Declaration of Conformity Growatt
