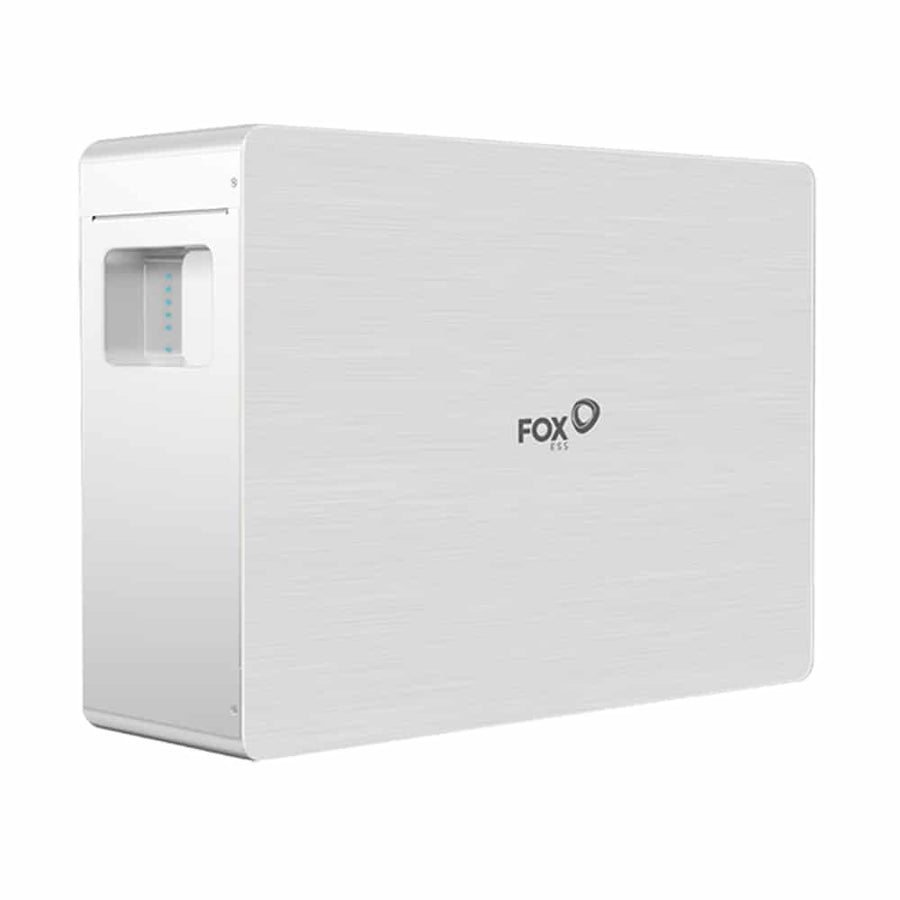

Fox ESS LV52 5.12kWh 48V Battery Module
Fox ESS LV52 5.12kWh 48V Battery Module
Fox ESS LV52 5.12kWh 48V Battery Module
The Fox ESS LV52 is a high-performance 5.12kWh 48V low-voltage lithium-ion battery module designed for residential and small-scale energy storage systems. Using advanced battery technology, the LV52 provides reliable energy storage, high round-trip efficiency and scalable capacity for solar PV installations.
With a rated capacity of 5.12kWh, up to 90% depth of discharge (DoD) and a specified lifespan of 6,000+ cycles, the Fox LV52 is designed for long-term daily energy storage applications. Multiple LV52 modules can be combined to increase overall system storage capacity, subject to the applicable Fox ESS system configuration and installation requirements.
Fox ESS LV52 Key Specifications
- Model: Fox ESS LV52
- Part Number: FE-LV52
- Battery Type: Lithium-ion battery pack
- Nominal Voltage: 48V
- Nominal Energy Capacity: 5.12kWh
- Usable Capacity: Up to 90% depth of discharge
- Cycle Life: ≥6,000 cycles
- Charge/Discharge Efficiency: Up to 95%
- Communication: CAN / RS485
- System Type: Low-voltage energy storage
- Installation: Plug-and-play system architecture
5.12kWh Energy Storage Capacity
Each Fox ESS LV52 battery module provides 5.12kWh of nominal energy storage. The modular design allows additional compatible battery modules to be installed where greater storage capacity is required, providing flexibility for different household energy consumption profiles and solar PV system sizes.
Battery storage can be used to store surplus electricity generated by solar panels during periods of high solar production and make that energy available when generation is lower, helping maximise the use of stored solar energy.
High-Efficiency 48V Battery Technology
The Fox LV52 is designed around a 48V low-voltage battery architecture and offers up to 95% charge and discharge efficiency. Its high efficiency helps reduce energy losses during battery charging and discharging, making it suitable for regular residential energy storage applications.
The battery also features CAN and RS485 communication interfaces for communication with compatible Fox ESS energy storage equipment and system components.
6,000+ Cycle Life
The Fox ESS LV52 is rated for 6,000 or more cycles, making it suitable for repeated charge and discharge operation. Cycle life is dependent on operating conditions, temperature, depth of discharge, charging and discharging parameters and the wider system configuration.
Scalable Modular Battery Storage
The LV52 forms part of Fox ESS's modular low-voltage energy storage range. Multiple compatible battery modules can be combined to increase total system capacity as required.
For installations using 2–4 batteries, Fox ESS requires two FE-JUNBOX-LV combiner boxes as part of the applicable battery configuration.
The LV52 can be used alongside the Fox ESS LV54, subject to the manufacturer's specified system configuration and compatibility requirements.
Easy Installation
The Fox LV52 has been designed for straightforward installation within compatible Fox ESS energy storage systems. Its modular architecture and communication interfaces simplify integration with supported Fox ESS inverters and battery system components.
Installations should always be designed and commissioned in accordance with the latest Fox ESS installation documentation, compatibility requirements and applicable UK electrical regulations.
Wide Operating Temperature Tolerance
The LV52 is designed to operate across a wide temperature range, providing flexibility for residential battery storage installations. Battery performance and available capacity can vary according to ambient temperature and operating conditions.
Fox ESS LV52 Compatibility
The Fox ESS LV52 is a dedicated low-voltage battery module and must be installed as part of a compatible Fox ESS energy storage system. Compatibility depends on the inverter, battery configuration, firmware and associated system components.
```LV52 and LV54 Compatibility
The Fox ESS LV52 and LV54 are compatible with each other when installed in an approved configuration.
LV52 and LV5200 Compatibility
The Fox ESS LV52 is not compatible with the LV5200. These battery models should not be mixed within the same battery system.
```Battery Combiner Box Requirements
When installing 2–4 Fox ESS LV52 batteries, two FE-JUNBOX-LV combiner boxes are required according to the supplied system configuration information.
The combiner boxes form part of the battery interconnection arrangement and should be selected and installed in accordance with Fox ESS system documentation.
CAN and RS485 Communication
The Fox LV52 incorporates CAN and RS485 communication for battery management and communication with compatible energy storage equipment. Correct communication cabling and configuration are essential for reliable battery and inverter operation.
Please note that the CAN cable supplied with certain Fox ESS LV54 battery configurations may be made up at the battery end only. Where applicable, the installer may need to terminate the inverter end of the communication cable in accordance with Fox ESS installation instructions.
Fox ESS LV52 Warranty Registration
The Fox ESS LV52 is supplied with a 5-year standard product warranty. Registering the installation with Fox ESS online is required to activate the extended 10-year product warranty, subject to the manufacturer's warranty terms and conditions.
Warranty registration should be completed following installation. Installers should retain the relevant installation information and review the current Fox ESS warranty documentation for the full warranty conditions, exclusions and registration requirements.
Fox ESS LV52 Applications
- Residential solar battery storage
- Solar PV self-consumption systems
- Low-voltage energy storage systems
- Modular home energy storage
- Surplus solar energy storage
- Compatible Fox ESS inverter and battery installations
Important Installation Information
- The LV52 must only be installed with compatible Fox ESS system equipment.
- The LV52 is not compatible with the Fox ESS LV5200.
- The LV52 and LV54 can be used together in compatible configurations.
- Two FE-JUNBOX-LV combiner boxes are required for configurations using 2–4 batteries, according to the specified system arrangement.
- Installation and commissioning must follow the latest Fox ESS technical documentation.
- Battery capacity, performance and cycle life can vary according to operating conditions and system configuration.
- Warranty registration is required to activate the 10-year product warranty; otherwise the standard warranty period applies.
Fox ESS LV52 5.12kWh Battery Summary
The Fox ESS LV52 5.12kWh 48V Battery Module provides scalable low-voltage energy storage for compatible Fox ESS solar and battery systems. With 5.12kWh nominal capacity, 90% depth of discharge, up to 95% efficiency, CAN/RS485 communication and a rated cycle life of 6,000+ cycles, it is designed for reliable long-term residential energy storage.
Its modular design allows storage capacity to be expanded using compatible battery modules, while compatibility with the Fox ESS LV54 provides additional configuration flexibility. The LV52 is suitable for installers and system designers looking for a modular 48V battery storage solution for compatible Fox ESS energy systems.
