OUT OF STOCK

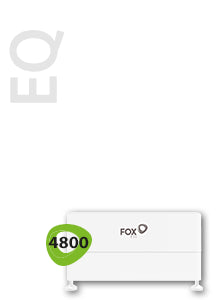

Fox EQ4800-L2 HV, 9.32kWh 1x Master 1x Slave
£2,198.13
ex VAT
Secure Checkout
14-Day Returns
Tracked Delivery
Store Your SolarUse free power after dark
Long Cycle LifeThousands of charge cycles
Managed & ProtectedBuilt-in battery management system
Fox ESS Fox EQ4800-L2 HV, 9.32kWh 1x Master 1x Slave
- Fox EQ4800-L2 HV, 9.32kWh 1x Master 1x Slave
- Part No: FE-HV-EQ-2-4.8-9.6
- Storage Systems - Li-ion Battery Pack
- 4.66kWh capacity
- Scalable to 41.94 kWh
- 90% Depth of Discharge
- Large temperature tolerance
- Easy installation
- CAN communication
- High voltage
This part is made up of the following items:
| 1 x FE-HV-EQM-4800 | Fox EQ4800, 4.66kWh HV Battery (Master) | |
| 1 x FE-HV-EQS-4800 | Fox EQ4800, 4.66kWh HV Battery (Slave) | |
Fox EQ 4.66kWh - Stack of 2 (9.32kWh Useable Storage) Incl. Master
EQ4800-L2
The quick & easy install feature allows for more EQ4800 battery modules to be added post installation.
Weight: 83.5kg
Dimensions (Width, Hight, Depth): 570mm x 386mm x 380mm
Don't forget: You must register your install with Fox online to activate the 12 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.
This battery requires a MINIMUM of 2 modules to work (Master + Slave). This battery can have a MAXIMUM of 9 modules in a stack (1x Master + 8x Slaves). Please check Fox Battery Size Guide.
IP65 RatedBuilt for UK weather conditions
Technical Specifications
Battery TypeLiFePO4
Nominal Energy9.32 kWh
Depth of Discharge90 %
Battery Voltage81.2 - 103.0 V
Continuous Discharge Rate4.48 kW
Height386 mm
Width570 mm
Depth380 mm
Weight83.5 kg
IP RatingIP65
