Fox ESS 5 IN STOCK

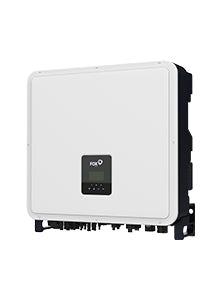

Fox ESS H3 Pro 30kW 3PH Hybrid Inverter

FE-H3-PRO-30.0
£2,434.70 ex VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

Fox ESS H3 Pro 30kW 3PH Hybrid Inverter

Fox ESS H3 Pro 30kW 3PH Hybrid Inverter
Part No: FE-H3-PRO-30.0
Storage Systems - Hybrid Inverter

Harness the power of the sun day and night with FoxESS' groundbreaking line of hybrid inverters.

  • 2 Battery Inputs
  • 3 MPPT trackers
  • Easy installation - Flexible configuration, Plug & Play, built-in fuse protection.
  • High Voltage - Includes high-voltage batteries for maximum round-trip efficiency.
  • IP65 Rated - Engineered to last with maximum flexibility. Suitable for outdoor installation.
  • Remote Monitoring - Monitor remotely via app or web portal.

Easily expand your system by adding extra batteries. There are three battery series you can choose from, which enables a storage capacity of up to 86.40 kWh.

This Inverter can have a MAXIMUM of 2 stacks with 7 modules per stack (1x Master + 6x Slaves), for a TOTAL of 2x Master + 12x Slaves.

FE-LAN-STICK not compatible with this range, please contact Fox for solution - service.uk@fox-ess.com (02475 100078)

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.

High Efficiency 97.80 %More power from the same roof space
IP65 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)30,000 VA
Module Efficiency97.80 %
Battery Voltage150 - 800 V
MPPT Quantity3
Min MPPT Voltage150 V
Max MPPT Voltage850 V
Max Input Voltage1,000 V
Max DC Power45,000 W
Max AC Power (5 min)33,000 VA
Max DC Current32 A
Max DC Inputs6
Integrated DC SwitchOptional
Height560 mm
Width600 mm
Depth225 mm
Weight52.5 kg
IP RatingIP65
Operating Temperature-25 °C to +60 °C, derating at +45 °C
Warranty5 years standard, 10 years when the installation is registered with Fox ESS online
