Fox ESS 389 IN STOCK

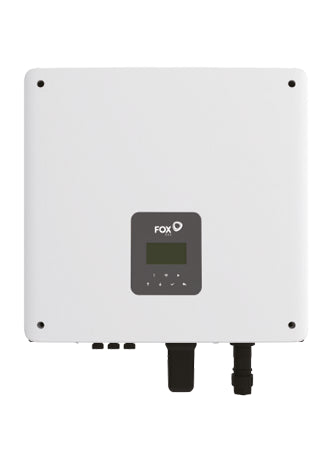

Fox H1 5.0kW Hybrid Inverter with EPS 1PH Gen 2

FE-H1-5.0-G2
£641.61 ex VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

Fox ESS Fox H1 5.0kW Hybrid Inverter with EPS 1PH Gen 2

Fox H1 5.0kW Hybrid Inverter with EPS 1PH Gen 2
Part No: FE-H1-5.0-G2
Storage Systems - Hybrid Inverter

The Fox system is easy to install and will save you time spent on installation. Remote monitoring is also avalible via your smartphone or web portal.

  • Remote monitoring via web portal or smartphone
  • Easy to expand battery capacity
  • Dual MPPT - ensure optimal solar production
  • High round-trip efficiency of 97%

CT Clamps and WiFi stick are included in the box. A second CT will be required if there's another generator set (i.e PV, wind or other).

A meter will be required for >30m distance between inverter and incoming power connection point.

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.

High Efficiency 97.08 %More power from the same roof space
IP65 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)5,000 W
Module Efficiency97.08 %
Battery Voltage80 - 480 V
MPPT Quantity2
Min MPPT Voltage80 V
Max MPPT Voltage550 V
Max Input Voltage600 V
Max DC Power7,500 W
Max AC Power (5 min)5,500 VA
Max DC Current16 / 16 A
Max DC Inputs2
Integrated DC SwitchYes
Height418 mm
Width434 mm
Depth185 mm
Weight22 kg
IP RatingIP65
Operating Temperature-25 °C to +60 °C
Warranty5 years standard, 10 years when the installation is registered with Fox ESS online
