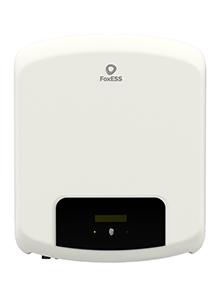

Fox ESS 5kW F Series 1PH Dual Tracker PV Inverter
Fox ESS 36 IN STOCK

Fox ESS 5kW F Series 1PH Dual Tracker PV Inverter

FE-F5000
£332.45 ex VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

Fox ESS 5kW F Series 1PH Dual Tracker PV Inverter

Fox ESS 5kW F Series 1PH Dual Tracker PV Inverter
Part No: FE-F5000
Inverters - Main Units
  • Rating: 5,000W
  • Phases: 1

FOX ESS - PV Inverter - F Series - 5kW

F5000

Our Dual-MPPT F Series range includes 3.0 - 6.0kW models. The F Series is IP65 rated and battery ready for easy upgrade when paired with a Fox ESS charge controller.

  • High Performance: Low start-up voltage, wide voltage range, 97.4% maxium effiency.
  • Easy Installation: Flexible configuration, plug and play set-up.
  • IP65 Rated: Engineered to last with maximum flexibility. Suitable for outdoor installation.
  • Remote Monitoring: Monitor your system remotely via smartphone app or web portal.

Don't forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it's 5 years as standard. Please click here for registration page. Please check the warranty document for more information.

High Efficiency 97.40 %More power from the same roof space
IP65 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)5,000 VA
Module Efficiency97.40 %
MPPT Quantity2
Min MPPT Voltage80 V
Max MPPT Voltage550 V
Max Input Voltage600 V
Max DC Power6,500 W
Max AC Power (5 min)5,500 VA
Surge AC Power (1 sec)5,001 W
Max DC Current12.5 A
Max DC Inputs1
Integrated DC SwitchYes
Height476.5 mm
Width402 mm
Depth148 mm
Weight15.5 kg
IP RatingIP65
Operating Temperature-25 °C to +60 °C
Warranty5 years standard, 10 years when the installation is registered with Fox ESS online

Build your complete solar system

Everything you need in one place.

  • Inverters
  • Batteries
  • Mounting Systems
  • Cabling & Accessories
Build a system
Documents & Certificates
CE Declaration of Conformity Fox ESS F Series (EMC) CE Declaration of Conformity Fox ESS F Series (EMC) CE Declaration of Conformity Fox ESS F Series (LVD) CE Declaration of Conformity Fox ESS F Series (LVD)
