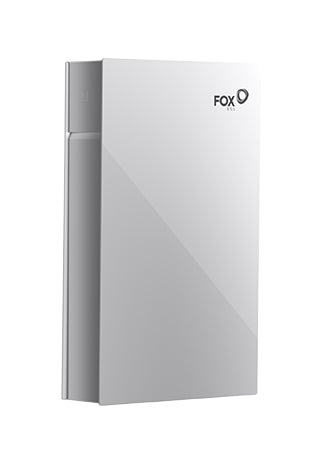

Fox ESS Evo Series 10.0kW with 10.24kWh
£3,035.09
ex VAT
Secure Checkout
14-Day Returns
Tracked Delivery
Store Your SolarUse free power after dark
Long Cycle LifeThousands of charge cycles
Managed & ProtectedBuilt-in battery management system
Fox ESS Evo Series 10.0kW with 10.24kWh
- Fox ESS Evo Series 10.0kW with 10.24kWh
- Part No: FE-EVO10-10H
- Storage Systems - Li-ion Battery Pack
- 3 x MPPT
- 10kW = 200% PV oversize ratio
- 80V start-up
- LCD screen with magnetic cover
- 20A/25A Imp/Isc
- EPS with 200% overload capability
- Export limitation (CT/METER/DRM0/ESTOP)
- Integrated Wi-Fi (no external dongle)
- Parallel mode (up to 3 modules)
- Protection level IP66
- Integrated 10.24kWh LFP battery
- Scale to 30.72kWh with parallel units
- High charge rates (up to 10kW per unit)
- 95% DoD
- IP66 rated
- Integrated battery warm-up
- Built-in fire suppressant
- High round-trip efficiency
EVO10-10H
The EVO Series is a fully integrated inverter and battery solution with integrated EPS. It’s a true all-in-one, boasting a sleek minimalist design optimised for installation both indoor and outdoor locations.
Inverter Features:
Battery Features:
IP66 RatedBuilt for UK weather conditions
Technical Specifications
Rated Power (Pmax)10,000 W
Battery TypeLFP
Nominal Energy10.24 kWh
Depth of Discharge95 %
Battery Voltage48 V
Continuous Discharge Rate10 kW
Height1009 mm
Width584 mm
Depth197 mm
Weight113 kg
IP RatingIP66
Operating Temperature-20 °C to +55 °C
