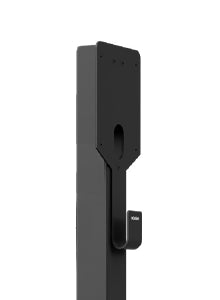

Easee Base 1-Way Mounting Post for EV Charger

Easee Base is a robust and weatherproof post that gives you more freedom to install the Charging Robot where it suits you best.

It has four configurations that support single, dual, triple and quad charger setups, getting the maximum out of the installation. Thanks to its Power Rail connection box, it connects different posts in series, while converging all Charging Robots terminations in the same rail.

• Up to four Easee Charging Robots can be installed on the same post.
• Easy to connect each post in series with the supplied Power Rail connection box.
• Made of aluminium, with a strong scratch resistant powder coating, ensuring a long lasting durability.
• Integrated cable hooks that allow the charging cable to be permanently connected
• Adapter plate that allows for a 45 degree installation angle.
• The charging cable can be permanently locked in the Charging Robot.
• Dimension (mm): 1-way / 2-way: H: 1500 x W: 156 x D: 80
• Weight: 6.1–7.7 kg
• Degree of protection: IP44

This part includes - an Adapter plate, Power rail with Ground connection plate, Side panel, Column, Mounting plate and 1-way blind cover. Screws, washers and nuts also included.

Please refer to the installation manual for full guidance and wiring of power rail.

Easee hardware is covered by our 3 years limited warranty.

Designed in Norway
