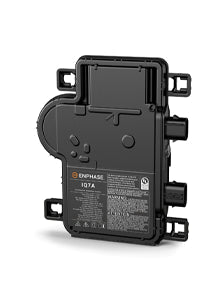

Enphase IQ7A 60 and 72 cell MC4 integrated Microinverter 230 & 400VAC 3 Phase
Enphase OUT OF STOCK

Enphase IQ7A 60 and 72 cell MC4 integrated Microinverter 230 & 400VAC 3 Phase

EN-IQ7A-72-M-INT-3PH
£130.83 ex VAT

How many inverters do you need?

Secure Checkout 14-Day Returns Tracked Delivery
High Conversion EfficiencyMore of your solar reaches the home
MPPT TrackingMaximises yield in changing light
Grid CompliantMeets UK G98 / G99 requirements

Enphase IQ7A 60 and 72 cell MC4 integrated Microinverter 230 & 400VAC 3 Phase

Enphase IQ7A 60 and 72 cell MC4 integrated Microinverter 230 & 400VAC 3 Phase
Part No: EN-IQ7A-72-M-INT-3PH
Inverters - Micro Inverter Units
  • Rating: 500W
  • Phases: 3
This part is made up of the following items:
1 x EN-IQ7A-72-M-INT Enphase IQ7A 60/72 cell MC4 Inegrated Microinverter 230VAC.

PRODUCT FEATURES

  • High performance version of the seventh-generation IQ platform
  • Smart-Grid ready
  • Easily integrated with the Gateway-S™ and Enphase™ monitoring and analysis software
  • Easy to install thanks to lightweight design and improved two-wire cabling
  • Double insulated housing, protection class II
  • Modular design allows simple expansion of system as required
  • Ultra reliable – system keeps working even if a single panel/microinverter fails or panel slips into shade
  • Mobile app allows enhanced control and monitoring possibilities

PRODUCT SPECIFICATION

  • Commonly used module pairings: 295W - 460W +
  • Module compatibility: 60-cell/120 half-cell and 72-cell/144 half-cell PV modules
  • Peak output power: 366 VA
  • Operating range: 18V - 58V
  • IP Rating: IP67
High Efficiency 96.5 %More power from the same roof space
Technical Specifications
Rated Power (Pmax)366 VA
Rated Power349 W
Module Efficiency96.5 %
MPPT Quantity1
Min MPPT Voltage38 V
Max MPPT Voltage43 V
Max Input Voltage58 V
Max DC Power500 W
Max AC Power (5 min)366 VA
Surge AC Power (1 sec)366 VA
Max DC Current10.2 A
Max DC Inputs1
Integrated DC SwitchNo
ConnectorStäubli MC4

Build your complete solar system

Everything you need in one place.

  • Inverters
  • Batteries
  • Mounting Systems
  • Cabling & Accessories
Build a system
Documents & Certificates
Application Note Enphase IQ7 DOC PEL V1.01-EN CE Declaration of Conformity IQ7A EC Declaration Data Sheet IQ7-DS-V2-MC4-EN-EU-2022-06-24 Installation Manual Envoy S Poland (Polish)
