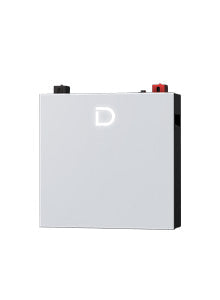

Dyness DL5.0C Pro Battery - 5.12kWh
Product details
- 5.12kWh usable battery storage capacity.
- Expandable system supporting up to 50 batteries in parallel.
- High-performance 1C continuous discharge.
- 95% Depth of Discharge (DoD) for maximum usable energy.
- Wide operating voltage range of 44.7V–57.6V.
- Integrated heating function for reliable charging and discharging in temperatures from -20°C to 50°C.
- Built-in WiFi connectivity with no external communication dongle required.
- Integrated intelligent fire extinguishing system for enhanced safety.
- Compact 46kg design for easier installation.
- IP20 protection rating for indoor installations.
The Dyness DL5.0C Pro Battery is a premium 5.12kWh low voltage LiFePO4 battery designed to deliver reliable, efficient and scalable energy storage for residential solar PV systems. Engineered for modern homes, the Dyness DL5.0C Pro helps maximise solar self-consumption, reduce grid reliance and provide dependable battery storage for everyday energy use.
Featuring advanced lithium iron phosphate (LiFePO4) technology, integrated WiFi, intelligent battery management and a built-in heating function, the Dyness DL5.0C Pro Battery is suitable for year-round operation in a wide range of installation environments.
Key Features
Designed for Modern Home Energy Storage
The Dyness DL5.0C Pro is ideal for homeowners looking to store excess solar energy, improve energy independence and reduce electricity costs. Its modular design allows the battery system to grow alongside future energy requirements, making it suitable for both new solar installations and battery storage upgrades.
Advanced LiFePO4 Battery Technology
Built using long-life LiFePO4 battery chemistry, the Dyness DL5.0C Pro delivers excellent cycle life, high efficiency and outstanding thermal stability. Combined with intelligent battery management, integrated safety systems and built-in wireless monitoring, it provides dependable long-term performance for residential energy storage applications.
DL5.0C Pro in figures
A 51.2 V, 100 Ah lithium iron phosphate module for low-voltage hybrid and off-grid systems. At 95% depth of discharge, each one gives about 4.86 kWh of usable energy.
Charge and discharge limits
Dyness recommends running it at 0.5C, which is 50 A. The maximum is 75 A charging and 100 A discharging, with 120 A allowed for up to 10 minutes. The operating window is 44.8–57.6 V, and it talks to the inverter over CAN or RS485. The cycle rating of 6,000 or more is measured at 0.2C, 25 °C and 95% depth of discharge.
Cold garages and indoor installs
Its heating function lets it charge from −20 °C (0 °C without heating), and it discharges from −20 °C to 55 °C. The enclosure is IP20, so it needs a dry indoor space such as a garage, loft or utility room. An aerosol fire extinguisher is listed as an option on the datasheet.
Building a bank
- Up to 50 modules in parallel
- Wi-Fi built in, with app-based firmware updates, so no separate dongle is needed
- Works in hybrid and off-grid systems
- Stacking brackets: one pair per battery, up to 6 high
- The inverter: check it against Dyness's compatible brands
The datasheet lists compatible inverters from SMA, Schneider, Victron, Ingeteam, Solis, GoodWe, Growatt, Solplanet, Luxpower, Deye and APsystems, among others. Confirm the exact inverter model with Dyness before ordering.
Needed for a stacked install
-
DL5.0C Pro stacking bracket
Made for this battery. One pair per module stacks up to six units.
Battery questions
A pack of 2 is 10.24 kWh, a pack of 4 is 20.48 kWh and a pack of 6 is 30.72 kWh nominal. Each is the same DL5.0C Pro module.
488 mm wide, 515 mm deep and 150 mm high, weighing 46 kg.
UN38.3 for transport, CE-EMC, CE-RED and IEC 62619.
The table below works out the price per module for each pack from the current prices.
