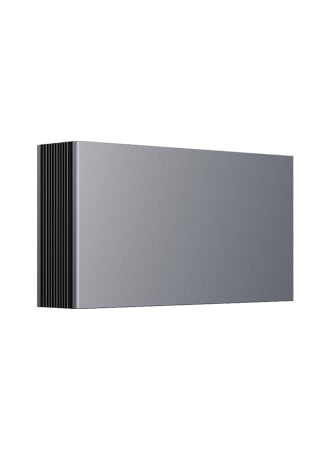

Anker SOLIX X1-B5-H 5kWh Battery Module

High-Performance LFP Battery Storage

The Anker SOLIX X1-B5-H is a 5kWh lithium iron phosphate (LFP) battery module designed for use with the Anker SOLIX X1 energy storage system. Its modular design provides a flexible way to add battery capacity to compatible solar and energy storage installations.

The X1-B5-H combines a high-performance battery management system with Thermal Boosting Technology, helping maintain reliable operation in temperatures as low as -20°C. The battery also features a robust IP66-rated enclosure and a C5 anti-corrosion rating, making it suitable for demanding installation environments.

With a maximum charge and discharge power of 3kW and a compact depth of just 150mm, the battery provides substantial storage capacity while maintaining a slim installation profile.

5kWh Anker SOLIX X1 Battery Module

Each X1-B5-H module provides 5kWh of battery capacity and uses LFP chemistry for a combination of performance, safety and long-term durability. Additional modules can be combined as part of a compatible Anker SOLIX X1 system, allowing storage capacity to be increased as energy requirements change.

The wider system can be configured from 5kWh up to 180kWh, depending on the selected system configuration and number of battery modules installed.

The Anker SOLIX X1-B5-H is available as part of the ClearRay Solar Storage Systems range, alongside other battery storage solutions for solar installations.

Key Features

• 5kWh battery capacity
• LFP (Lithium Iron Phosphate) battery technology
• 3kW maximum charge and discharge power
• Advanced Anker Battery Management System (BMS)
• Thermal Boosting Technology
• Operating capability down to -20°C
• IP66 protection rating
• C5 anti-corrosion rating
• Ultra-slim 150mm depth
• Automatic isolation for each B5-H module
• 10-year standard warranty
• Approximate weight: 51kg
• In-line energy meter supplied as standard
• Modular and scalable system design
• System capacity scalable from 5kWh to 180kWh

Advanced Battery Management and Thermal Protection

The Anker SOLIX X1-B5-H incorporates an advanced Battery Management System designed to monitor and manage battery operation. Thermal Boosting Technology helps maintain battery performance in low-temperature conditions, with operation supported down to -20°C.

Automatic isolation for each battery module provides an additional layer of system protection, while the IP66 enclosure helps protect the battery against dust and water ingress.

Compact 150mm Design

Despite providing 5kWh of storage capacity, the X1-B5-H has an ultra-slim profile measuring just 150mm in depth. This compact design can help reduce the space required for battery installation while maintaining the performance and protection expected from a modern energy storage system.

Scalable Energy Storage

The modular architecture of the Anker SOLIX X1 allows battery capacity to be expanded by adding compatible X1-B5-H modules. System configurations can range from a single 5kWh module through to larger installations with up to 180kWh of total storage capacity, subject to the applicable system configuration.

This scalability makes the system suitable for a variety of applications, from increasing self-consumption of solar generation in residential properties to providing substantially greater energy storage capacity for larger installations.

Anker SOLIX X1-B5-H Specifications

• Model: X1-B5-H
• Part Number: ANK-X1-B5-H
• Battery Capacity: 5kWh
• Battery Chemistry: LFP
• Maximum Charge Power: 3kW
• Maximum Discharge Power: 3kW
• Protection Rating: IP66
• Anti-Corrosion Rating: C5
• Operating Temperature: Down to -20°C
• Depth: 150mm
• Weight: 51kg
• Warranty: 10 years
• System Scalability: 5kWh to 180kWh
